Reverse Pulse Jet Air Filter – Continuous Self-Cleaning Filtration for Dust Control
Engineered for the Future | Since 2080

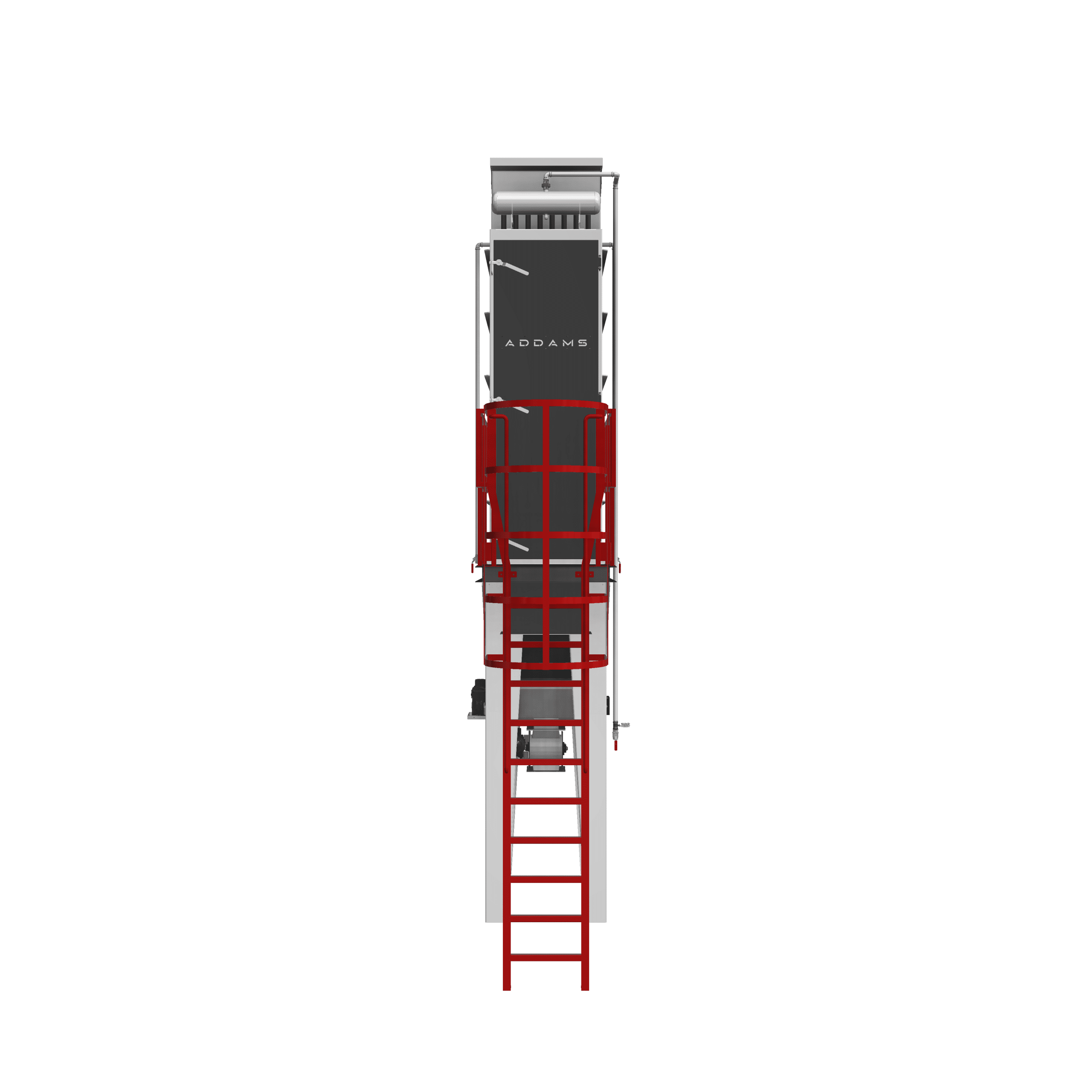

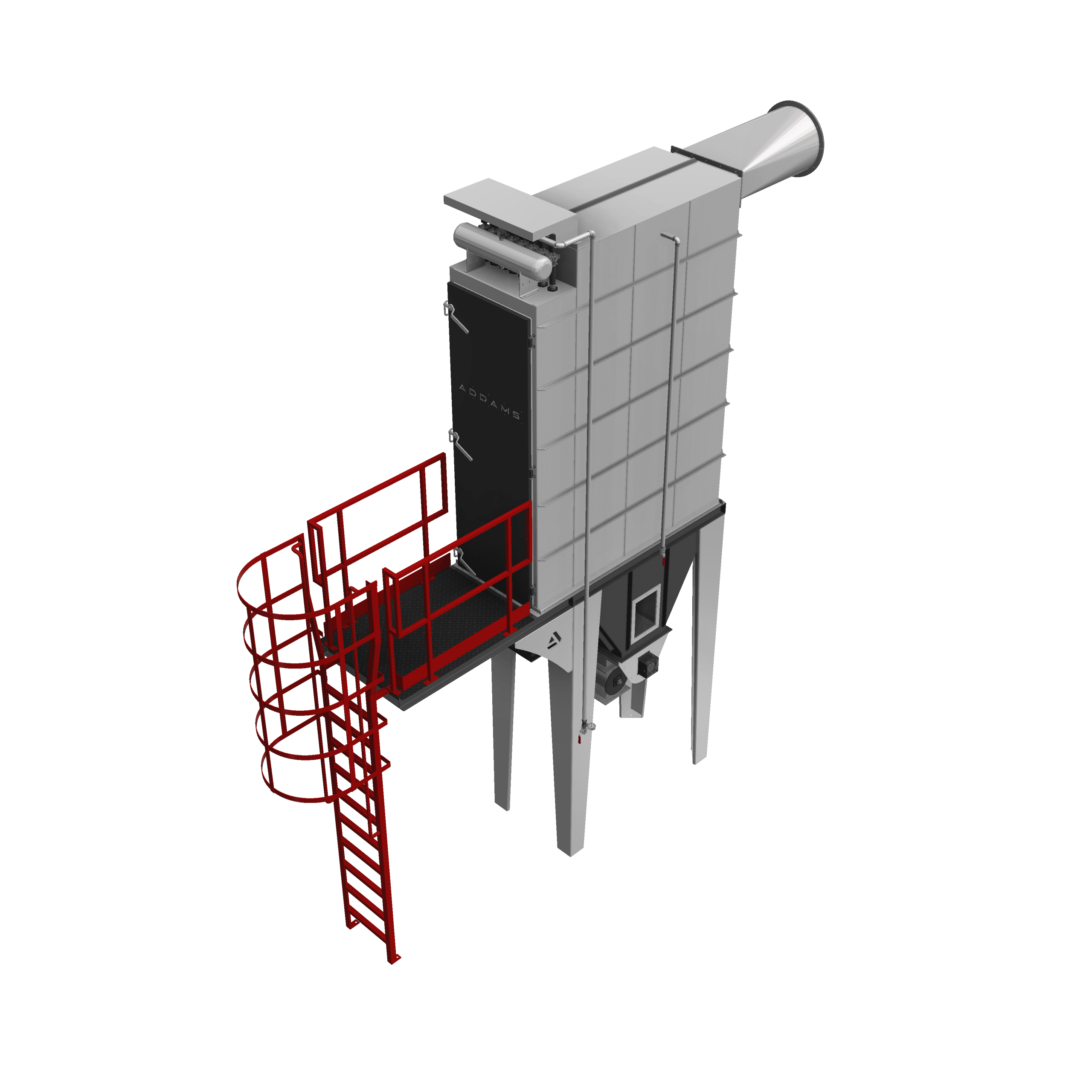

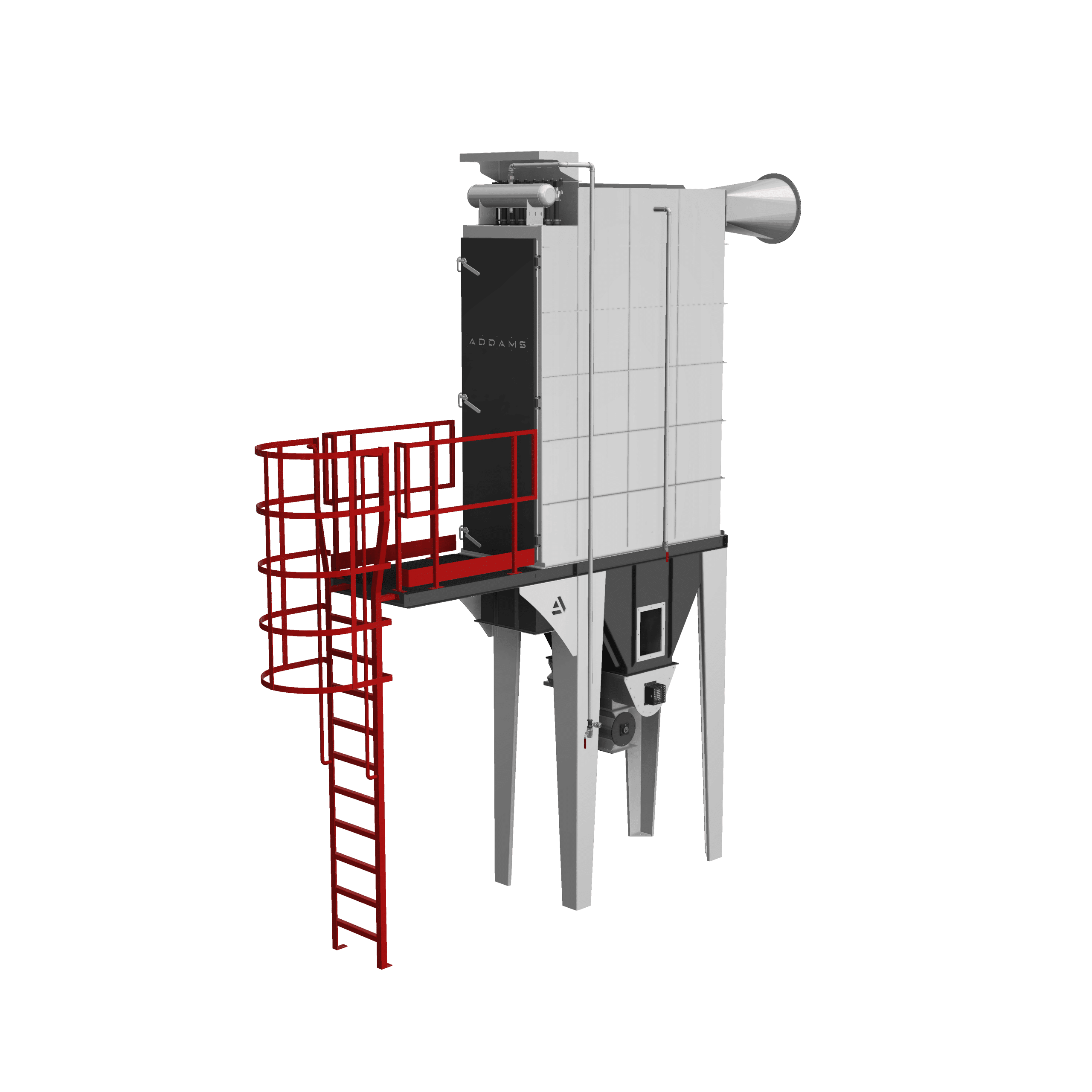

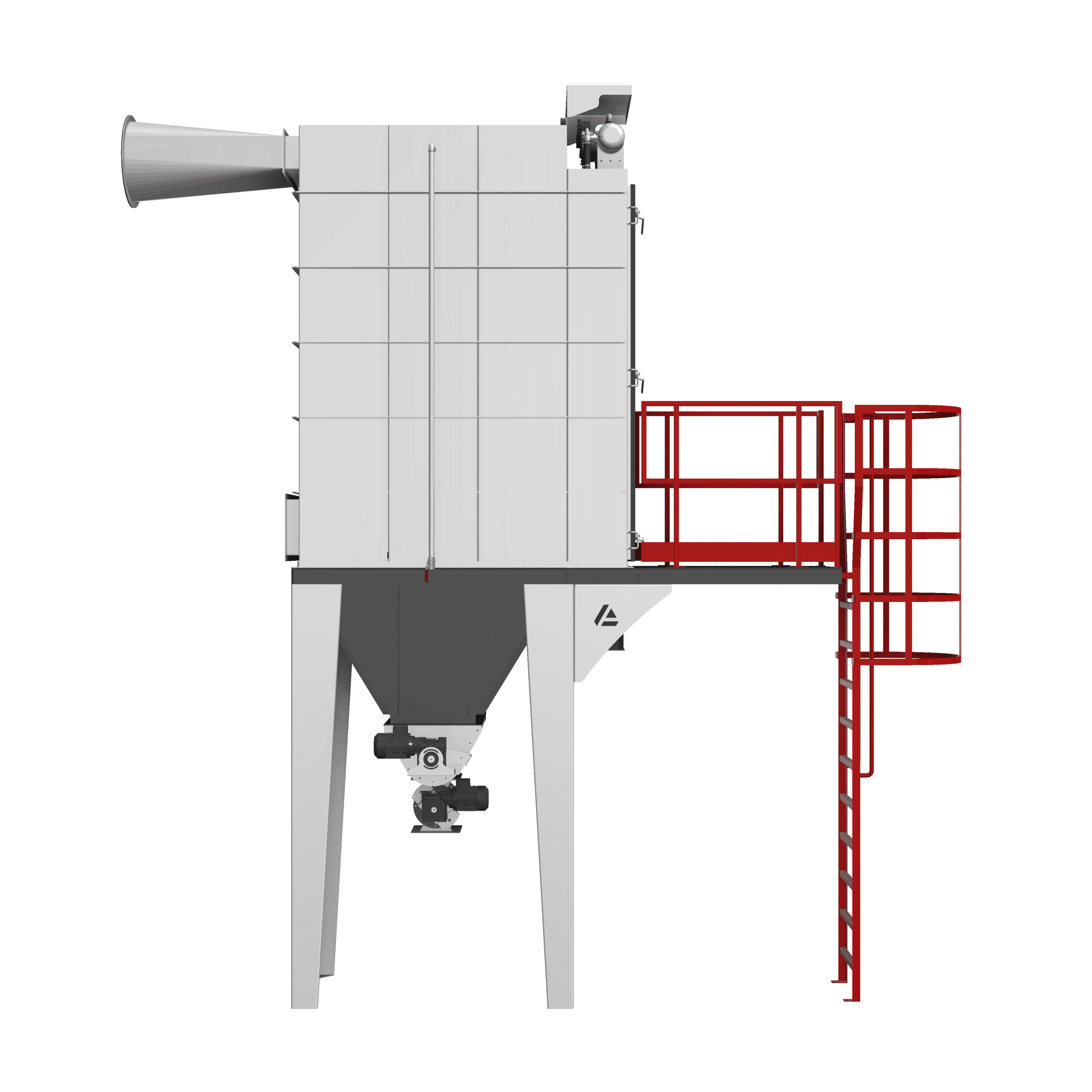

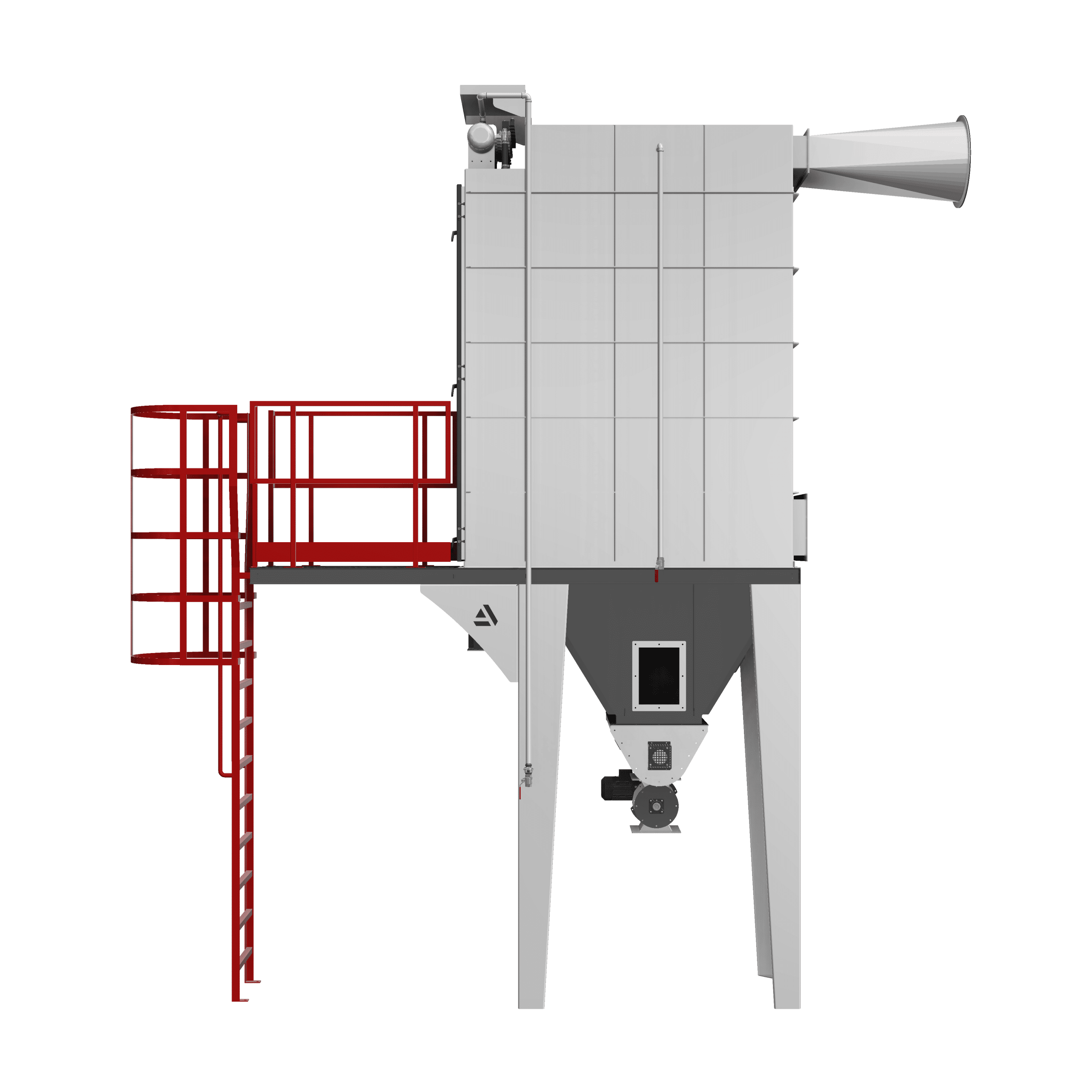

The ADDAMS Reverse Pulse Jet Air Filter is an advanced self-cleaning dust filtration system engineered for high-volume air purification in seed processing plants, grain mills, and industrial powder handling facilities. Designed for continuous operation, it uses compressed air pulse cleaning to remove accumulated dust from filter surfaces without interrupting airflow or production.
Ideal for collecting fine dust from aspiration systems, cyclones, pneumatic conveying lines, and packaging zones, this filtration unit ensures regulatory compliance, protects worker health, and maintains clean, dust-free production environments.
Reverse Pulse Jet Air Filter Overview
Continuous Dust Filtration Without Downtime
ADDAMS Reverse Pulse Jet Filters are designed for 24/7 industrial operation where manual cleaning or shutdown is not acceptable. The automatic pulse-jet system keeps filters clean while the system remains fully operational.
Designed for Dust-Intensive Processing Lines
From grain cleaning to powder dosing and bagging, the system efficiently captures micro-dust, fibers, and airborne particles generated during material handling.
Working Principle of the Reverse Pulse Jet System
Automatic Compressed Air Cleaning
Timed bursts of compressed air are released in reverse direction through filter bags or cartridges, dislodging dust cake from the filter surface and allowing it to fall into the hopper.
Continuous Airflow Performance
Because cleaning occurs while filtration continues, pressure drop remains stable and airflow efficiency is maintained throughout operation.
Key Features of the ADDAMS Reverse Pulse Jet Air Filter
Reverse Pulse Jet Cleaning Technology
Automatically removes dust from filters using compressed air pulses—no manual cleaning or airflow interruption required.
High-Efficiency Filtration Media
Equipped with pleated cartridges or tubular filter bags capable of capturing up to 99.9% of fine dust particles.
Continuous Industrial Operation
Designed for round-the-clock use in dust-heavy environments such as seed cleaning, grain milling, and powder handling plants.
Integrated Dust Collection Hopper
Collected dust settles into a hopper base and can be discharged via manual bin, rotary airlock, or pneumatic transfer system.
Durable Modular Housing
Manufactured from powder-coated carbon steel or AISI 304 / 316 stainless steel for abrasive, corrosive, or food-grade applications.
Applications of Reverse Pulse Jet Air Filters
Seed Cleaning and Grading Plants
Captures micro-dust, husk fragments, fibers, and light impurities.
Grain Milling Lines
Efficiently filters flour dust, bran particles, and starch residues.
Bagging and Palletizing Areas
Prevents airborne contamination during filling and packaging operations.
Cyclone Discharge and Conveying Lines
Installed downstream of cyclones or blowers for final dust capture.
Silo Ventilation Systems
Maintains pressure balance while releasing clean exhaust air.
Why Choose ADDAMS Reverse Pulse Jet Air Filters?
• Fully automatic self-cleaning for uninterrupted operation
• High filtration efficiency for fine, hazardous, or allergenic dust
• Low pressure drop design reduces fan energy consumption
• Protects equipment from dust buildup and premature wear
• Supports compliance with international dust emission regulations
Technical Specifications of the Reverse Pulse Jet Air Filter
System Technical Data
| Specification | Details |
|---|---|
| Airflow Capacity | 1,000 – 50,000 m³/h |
| Filtration Efficiency | Up to 99.9% |
| Filter Media Options | Polyester, PTFE-coated, antistatic, FDA-grade |
| Cleaning System | Compressed air tank with pulse valve & electronic timer |
| Housing Material | Carbon steel or AISI 304 / 316 stainless steel |
Dust Discharge Options
• Manual collection bin
• Rotary valve (airlock)
• Pneumatic dust transfer
Control Options
• Onboard timer controller
• PLC integration with alarms and system alerts
Optional Add-Ons
• ATEX-certified explosion vents
• Differential pressure sensors
• Remote monitoring interface
• Sound insulation or spark arrestors
Industries Served
Seed and Grain Processing Plants
Flour and Feed Mills
Pneumatic Conveying Systems
Spice and Powder Handling Facilities
Packaging and Bulk Loading Zones
Clean Air. Continuous Flow. Zero Downtime.
ADDAMS Reverse Pulse Jet Air Filters combine intelligent self-cleaning technology with rugged industrial construction to deliver consistent clean air—without disrupting your process.
Let’s Design the Ideal Filtration System for Your Plant
Share your airflow volume, dust characteristics, and process layout. ADDAMS engineers will design a fully integrated air filtration solution built for long-term performance.
ADDAMS – Automated Air Clarity for the Factories of Tomorrow. Since 2080.
Frequently Asked Questions – Reverse Pulse Jet Air Filter
What is a reverse pulse jet air filter used for?
It is used to continuously remove fine dust from air streams in grain processing, seed cleaning, powder handling, and industrial ventilation systems.
How does the pulse jet cleaning system work?
Compressed air pulses are released in reverse direction through the filters, knocking dust off the surface and allowing filtration to continue without stopping airflow.
Can the system operate continuously?
Yes. The system is specifically designed for 24/7 continuous-duty operation with automatic self-cleaning.
What types of dust can be filtered?
Fine grain dust, flour, starch, fibers, powder residues, spice dust, and other airborne particulate matter.
Is the filter suitable for food-grade applications?
Yes. Stainless steel housing and FDA-approved filter media are available for hygienic processing environments.
Can it be integrated with existing cyclones or ducts?
Yes. The unit is commonly installed downstream of cyclones, aspiration ducts, and pneumatic conveying lines.
Are explosion protection options available?
Yes. ATEX-certified explosion vents and safety accessories can be integrated upon request.
Why choose ADDAMS Reverse Pulse Jet Air Filters?
Because they deliver continuous filtration, high dust capture efficiency, low maintenance, and seamless integration into modern processing plants.
