Zig Zag Separator Machine: High-Efficiency Vertical Air Classification

Engineered for the Future | Since 2080

The Zig Zag Separator Machine category represents the pinnacle of aerodynamic separation technology. Unlike horizontal aspirators, the Zig Zag (also known as a Zig-Zag Classifier) utilizes a vertical, multi-stage “cascade” effect to separate materials based on their specific gravity and aerodynamic profile. This category is essential for processors who need to remove light impurities—such as husks, dust, empty shells, and thin plastics—from heavier, high-value products like seeds, grains, and recycled granules.

Engineered with precision airflow dynamics, the Zig Zag Separator Machine ensures a high-purity output by subjecting the material stream to multiple “air-wash” cycles within a single column, making it a critical component for both agricultural and industrial recycling lines.

Quick View

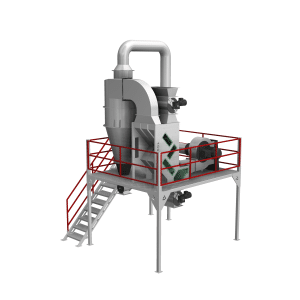

Zig Zag Air Separator

Technical Principles of Zig Zag Classification

The Multi-Stage Cascade Aspiration Effect

The engineering excellence of the Zig Zag Separator Machine lies in the internal "Z" shaped geometry of the separation column.

The Cascade Motion: As material falls through the vertical column, the Zig Zag shape forces it to change direction at every "turn." This turbulence breaks up clumps and ensures that every individual particle is exposed to the air stream.
Counter-Flow Air Velocity: A powerful fan pulls air upward through the column. Light particles (husks, empty seeds) are caught by the air and carried to the top discharge, while heavy particles (prime seeds) continue to fall to the bottom.
Repeatable Separation: Because the air "hits" the material at every turn in the Zig Zag, the product is essentially cleaned 10 to 15 times in a single pass, providing far superior results compared to single-stage aspiration.

Why Integrate Zig Zag Separator Machines?

Superior Light-Impurity Removal for Industrial Precision

A Zig Zag Separator is a strategic addition to any plant where high-volume aspiration is required.

Perfect Shell and Husk Removal: Ideal for sunflower seeds, pumpkin seeds, and nuts where the empty hull must be separated from the kernel with 100% accuracy.
Dust and Fine Fiber Elimination: Effectively pulls away micro-dust and fibrous materials that can clog downstream equipment or reduce the quality of the final product.
Seed Vigor Improvement: In seed processing, the Zig Zag can remove "light" or immature seeds that have the same size as healthy ones but lack the weight for proper germination.
Plastic and Recycling Versatility: Extensively used in the recycling industry to separate light plastic films or paper labels from heavier plastic flakes or rubber granules.

Key Features of the ADDAMS Zig Zag Series

Engineered for Micro-Aspiration and Constant Flow

The equipment within the Zig Zag Separator Machine category is built for durability and precise control:

Variable Frequency Air Control: Integrated VFD systems allow operators to fine-tune the fan speed, enabling the machine to handle everything from heavy chickpeas to ultra-light sesame seeds.
Heavy-Duty Wear-Resistant Liners: For abrasive materials like minerals or glass, our columns can be fitted with reinforced liners to prevent erosion and extend machine life.
Observation Windows: High-clarity, impact-resistant windows allow operators to visually monitor the "boiling" effect of the air separation and make real-time adjustments.
Modular Column Heights: Depending on the difficulty of the separation, the number of "Z" stages can be customized to ensure the target purity level is reached.

Frequently Asked Questions – Zig Zag Separator Machine

1. How does a Zig Zag Separator differ from a standard Aspirator? A standard aspirator usually has only one oriki "air-hit" point. The Zig Zag Separator Machine creates a multi-stage cascade where the material is washed by air at every bend in the column (typically 10+ times), leading to much higher purity levels for light impurities.

2. Can I adjust the machine for different seed weights? Yes. By adjusting the airflow via the variable speed fan and the air-intake valves, you can calibrate the "lifting power" of the machine. This allows you to switch between processing light seeds like sunflower and heavier grains like corn.

3. Does the Zig Zag Separator require a separate dust collector? Yes. To be effective, the light particles pulled to the top of the Zig Zag Separator Machine must be captured. We recommend connecting the unit to an ADDAMS high-efficiency Cyclone or a Jet-Pulse Bag Filter system.

4. What is the "Boiling Zone" in a Zig Zag column? The boiling zone is the area within the "Z" bends where air and material mix intensely. The air velocity is set so that the heavy product is just about to be lifted but still falls, while the light product is successfully carried upward.

5. Is the machine suitable for the food industry? Absolutely. We manufacture these machines using AISI 304 or 316 stainless steel and food-grade gaskets, ensuring they meet all HACCP and international food safety requirements.

6. Can it separate empty seeds from full seeds? This is one of the primary uses of the Zig Zag Separator. Since empty or insect-damaged seeds are significantly lighter, they are easily pulled out of the stream, significantly increasing the overall germination rate and quality.

7. How much maintenance does the Zig Zag column require? Since there are no moving parts inside the separation column itself (no screens or rotors), the Zig Zag Separator Machine is extremely low-maintenance. Regular inspection of the fan and cleaning of the observation windows are typically all that is required.
