Hammer Mill Machine

Efficient Size Reduction for Grain, Seed, Herb, and Oilseed Processing

Engineered for the Future | Since 2080

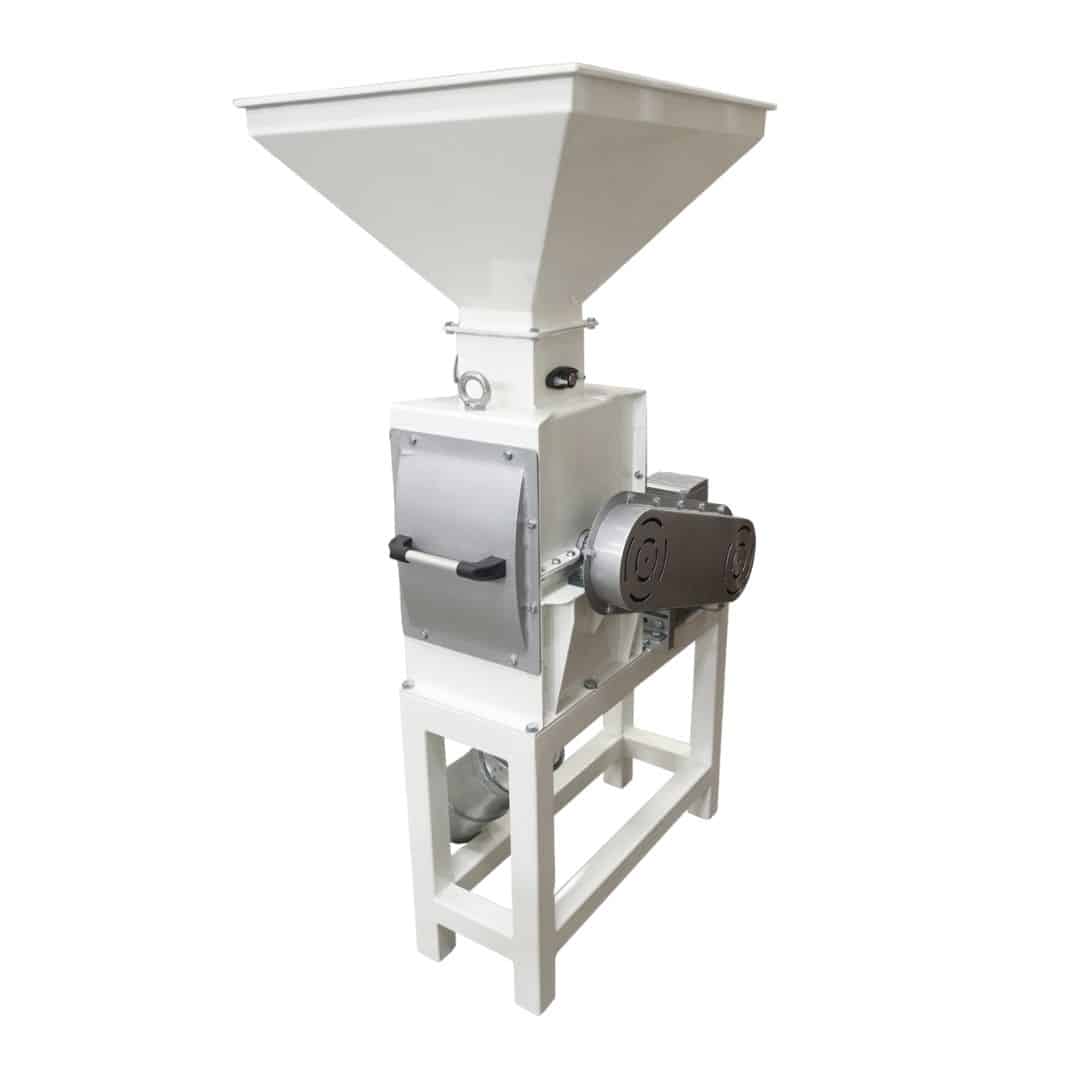

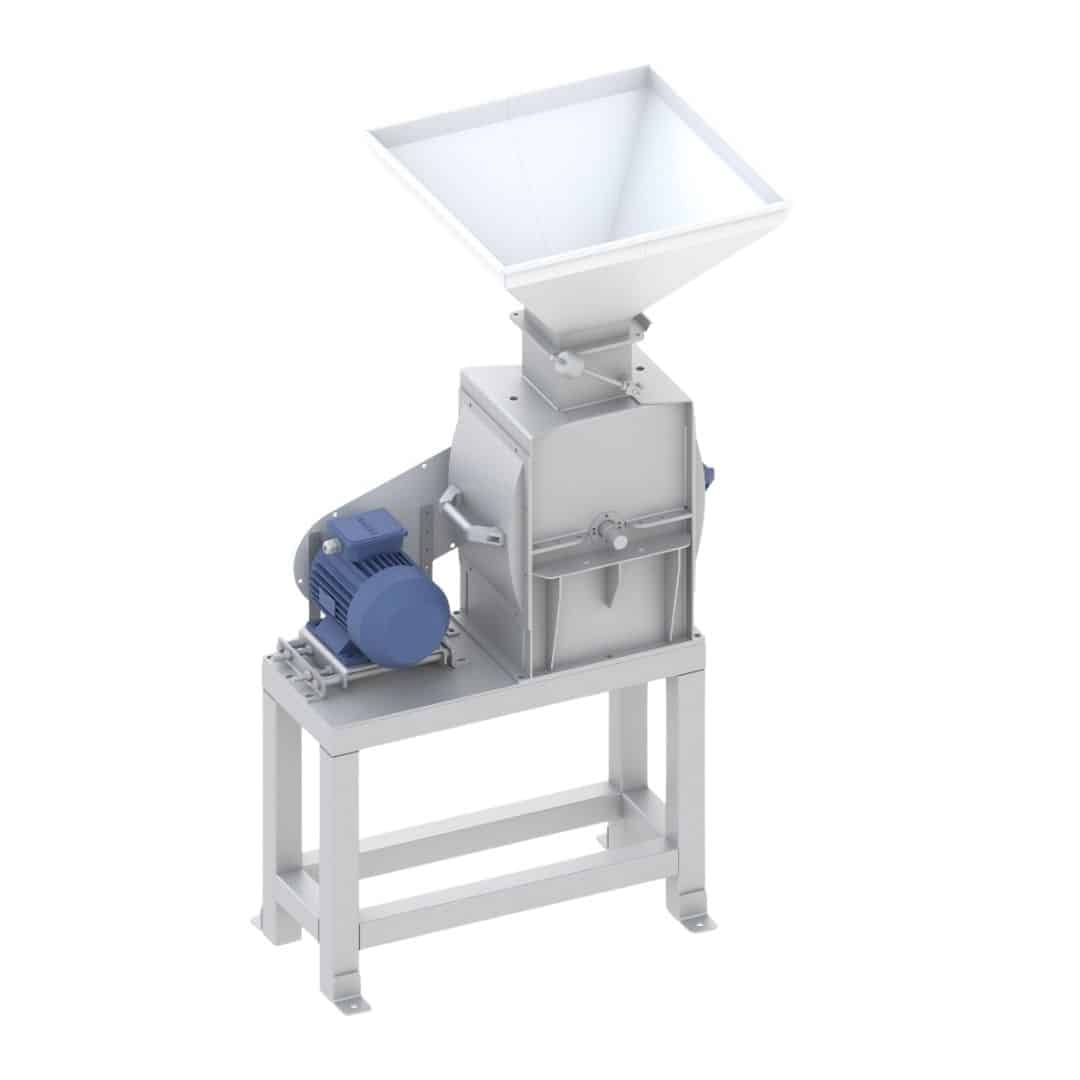

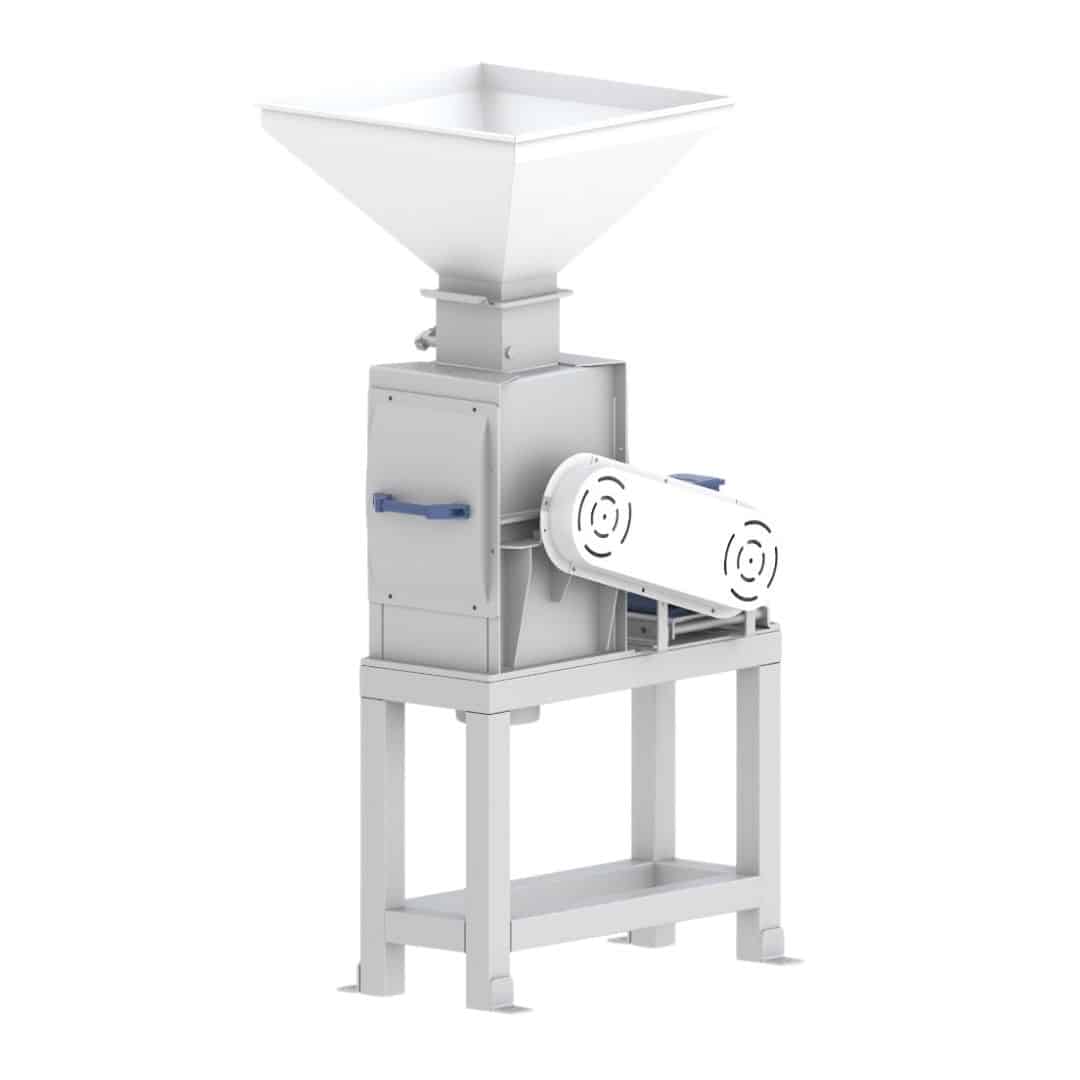

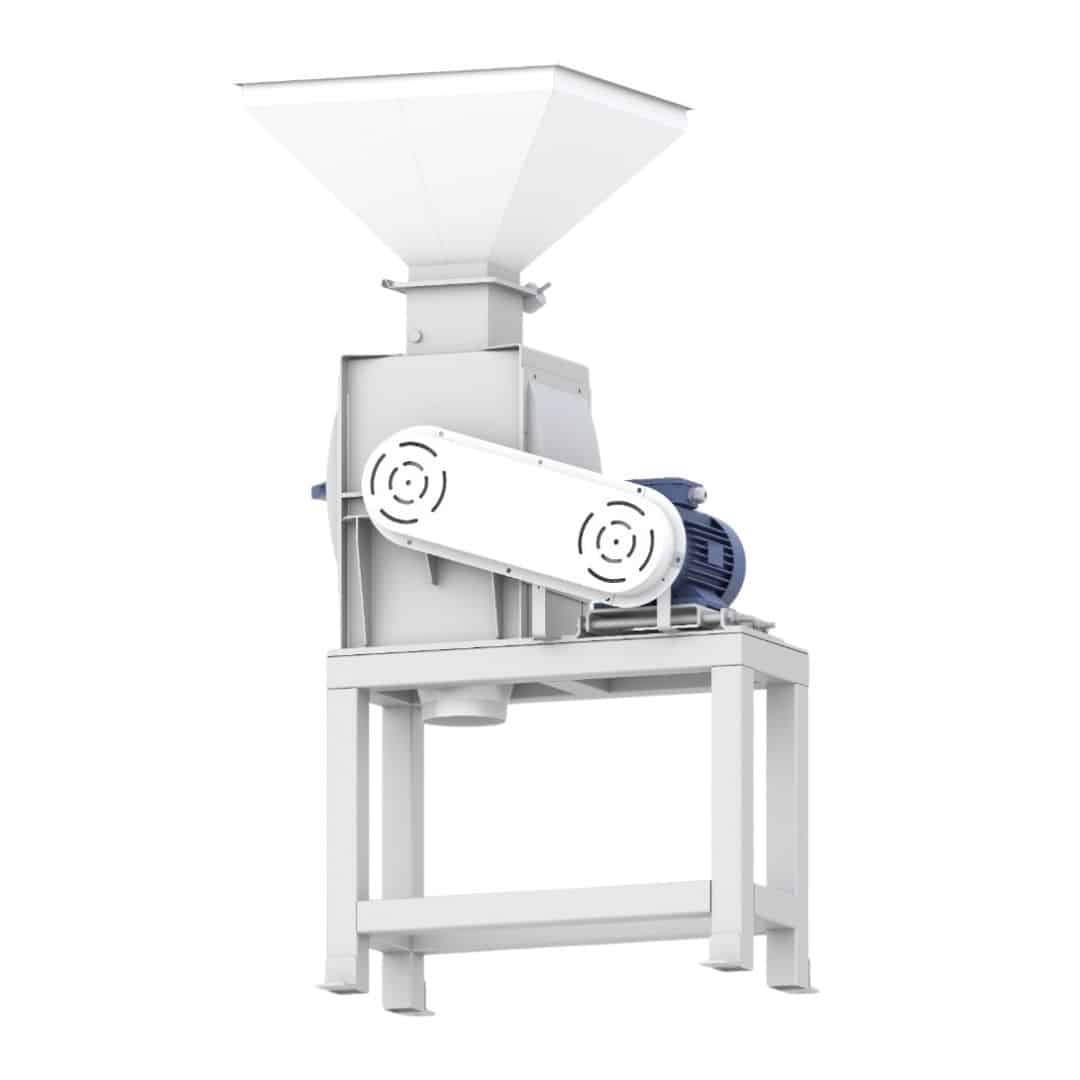

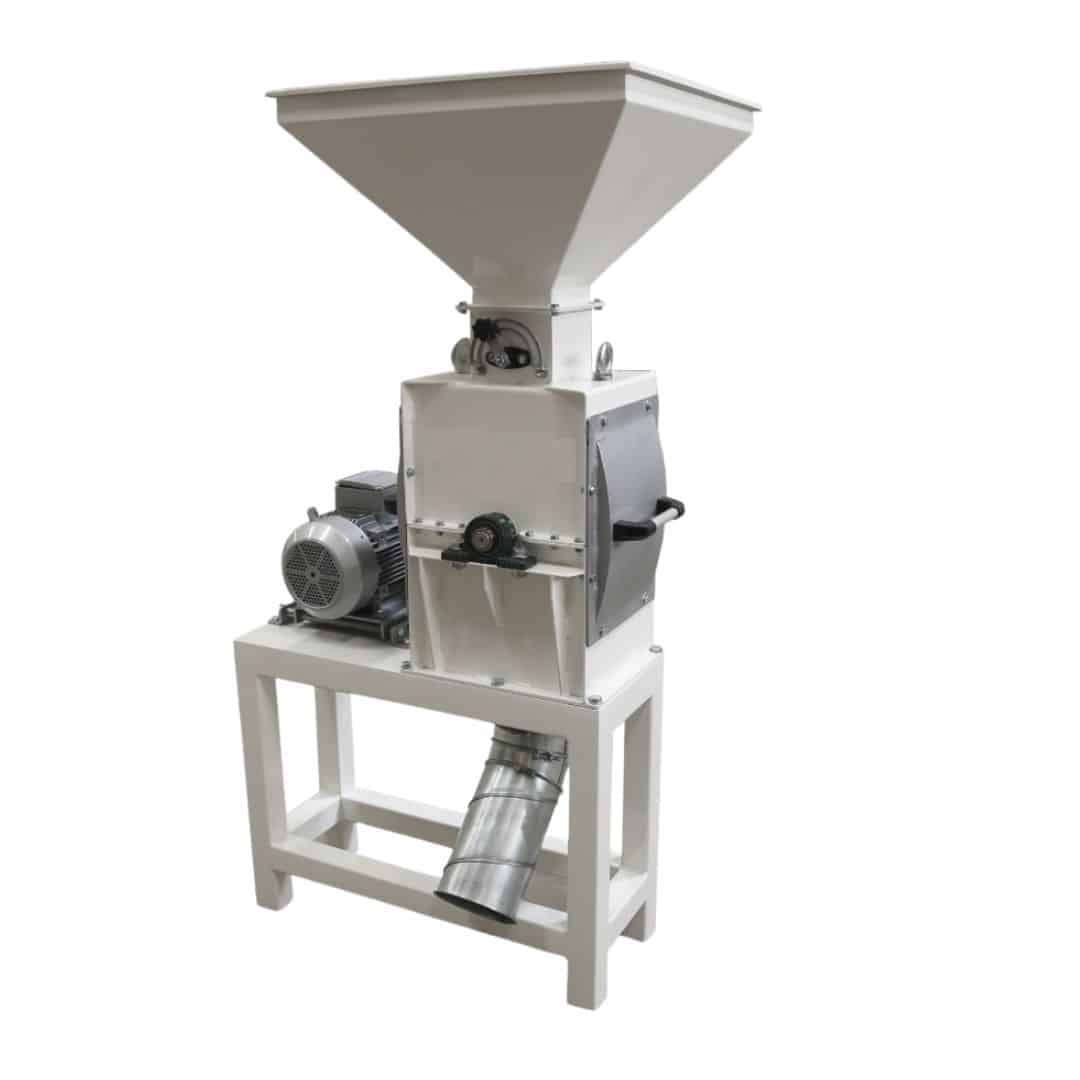

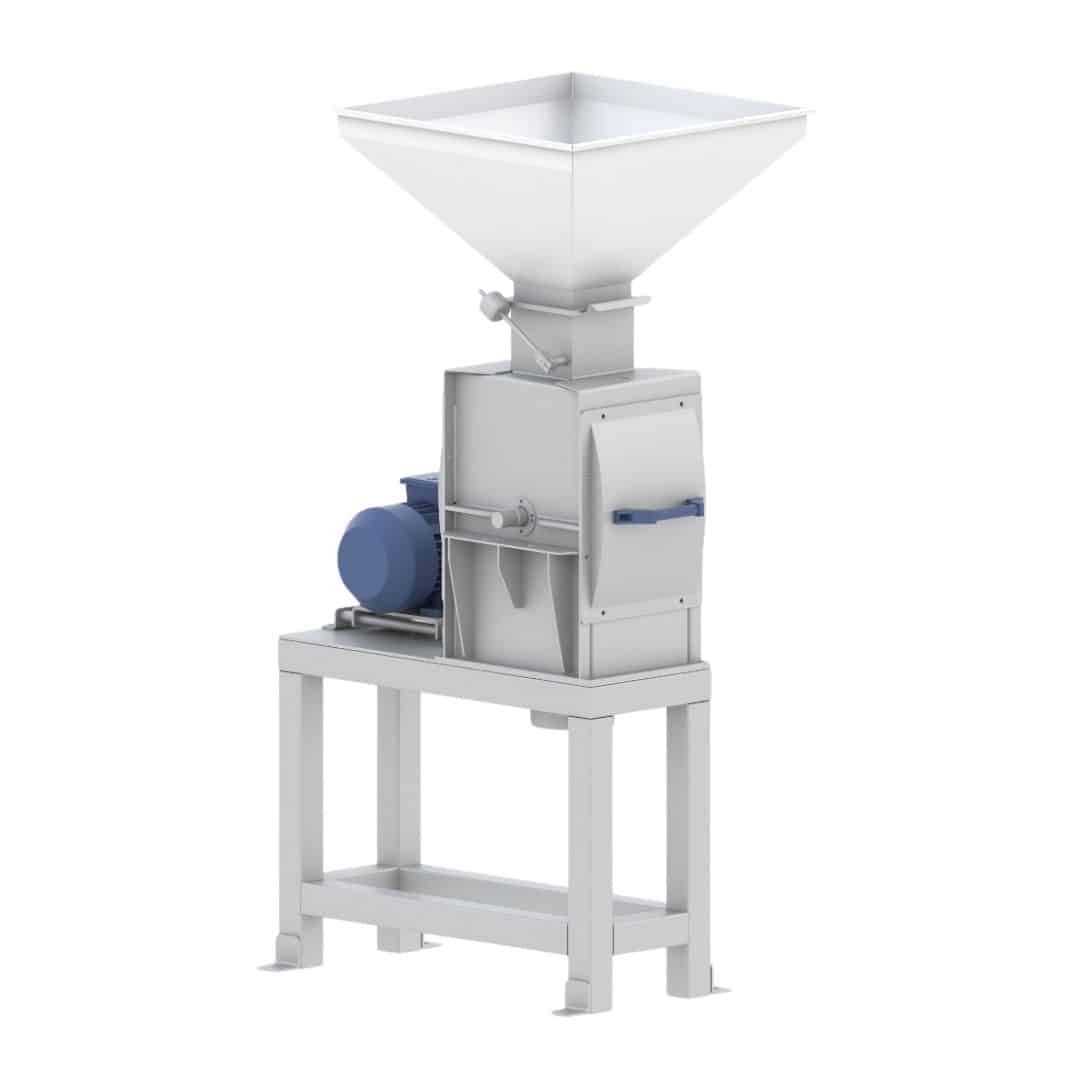

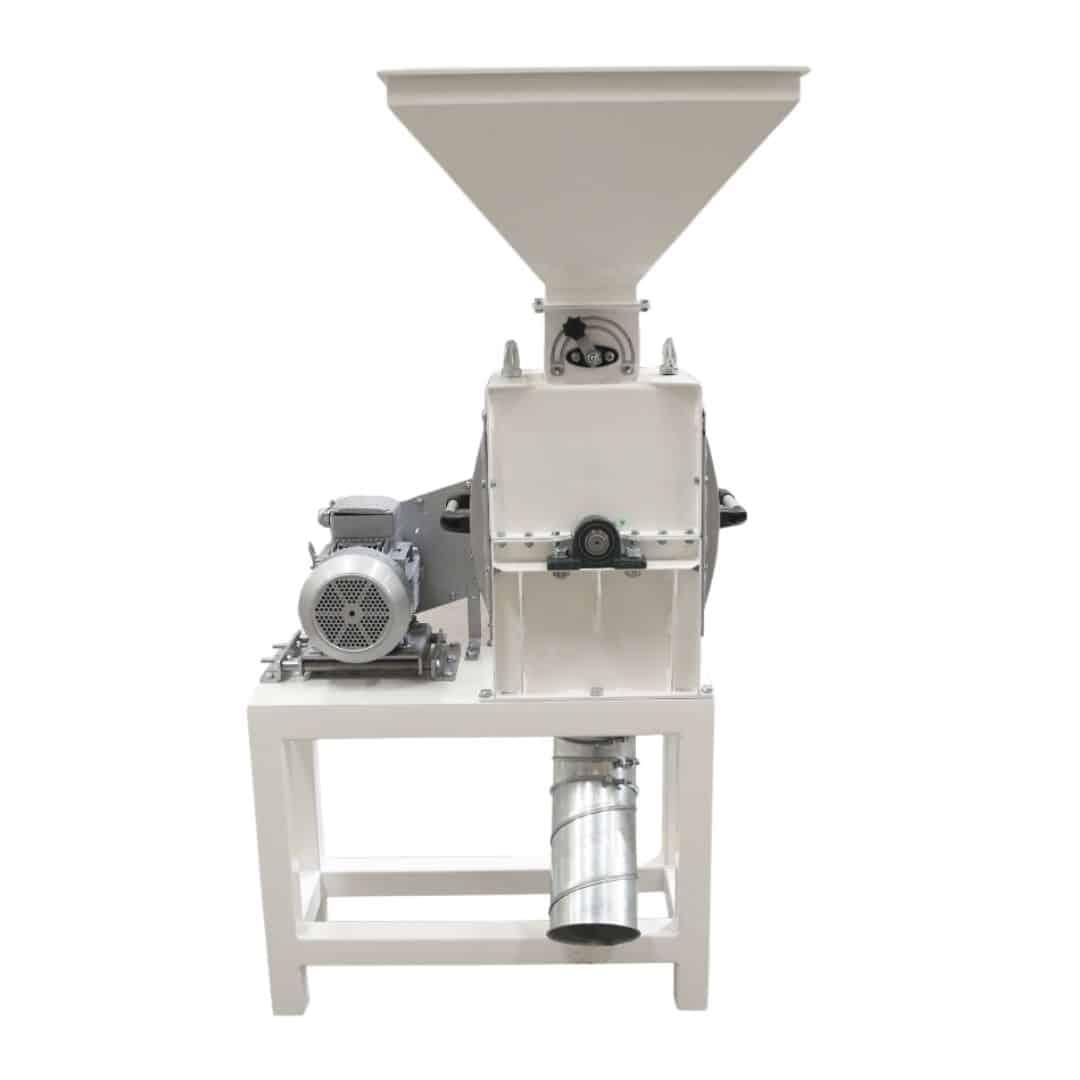

The ADDAMS Hammer Mill Machine is a high-performance milling powerhouse designed for the continuous size reduction of a vast array of dry agricultural and industrial materials. Utilizing high-speed rotating hammers that impact material in mid-air and against a rugged grinding chamber, this machine excels at transforming bulk grains, pulses, oilseeds, and fibrous herbs into uniform meals or powders.

Precision-engineered for durability, the ADDAMS Hammer Mill is the backbone of high-capacity processing lines. Its ability to handle diverse materials—from hard maize kernels to fibrous moringa leaves—makes it a versatile asset for food-grade, pharmaceutical, and industrial-scale production facilities worldwide.

---

Technical Specifications and Machine Architecture

Official Engineering Data and Technical Documentation

The ADDAMS Hammer Mill features a dynamically balanced rotor system and interchangeable screens, allowing for rapid transition between different particle size requirements without compromising structural integrity.

Feature	Detailed Technical Specification
Motor Power Range	Industrial-grade drives from 7.5 kW to 132 kW
Capacity Range	High-volume throughput from 500 kg/h up to 12,000 kg/h
Rotor Technology	High-speed impact hammers (up to 3,000 RPM)
Grinding Fineness	Interchangeable screens ranging from 0.5 mm to 12 mm
Construction	Heavy-duty Carbon Steel or AISI 304/316 Stainless Steel
Safety & Access	Quick-opening doors with safety interlocks for tool-free maintenance
Environmental Control	Dust-control ready for integration with aspiration/cyclone systems
Compliance	Global standards (CE, FDA, GMP)

---

Operating Principle: Impact and Shearing Dynamics

The Mechanics of High-Volume Size Reduction

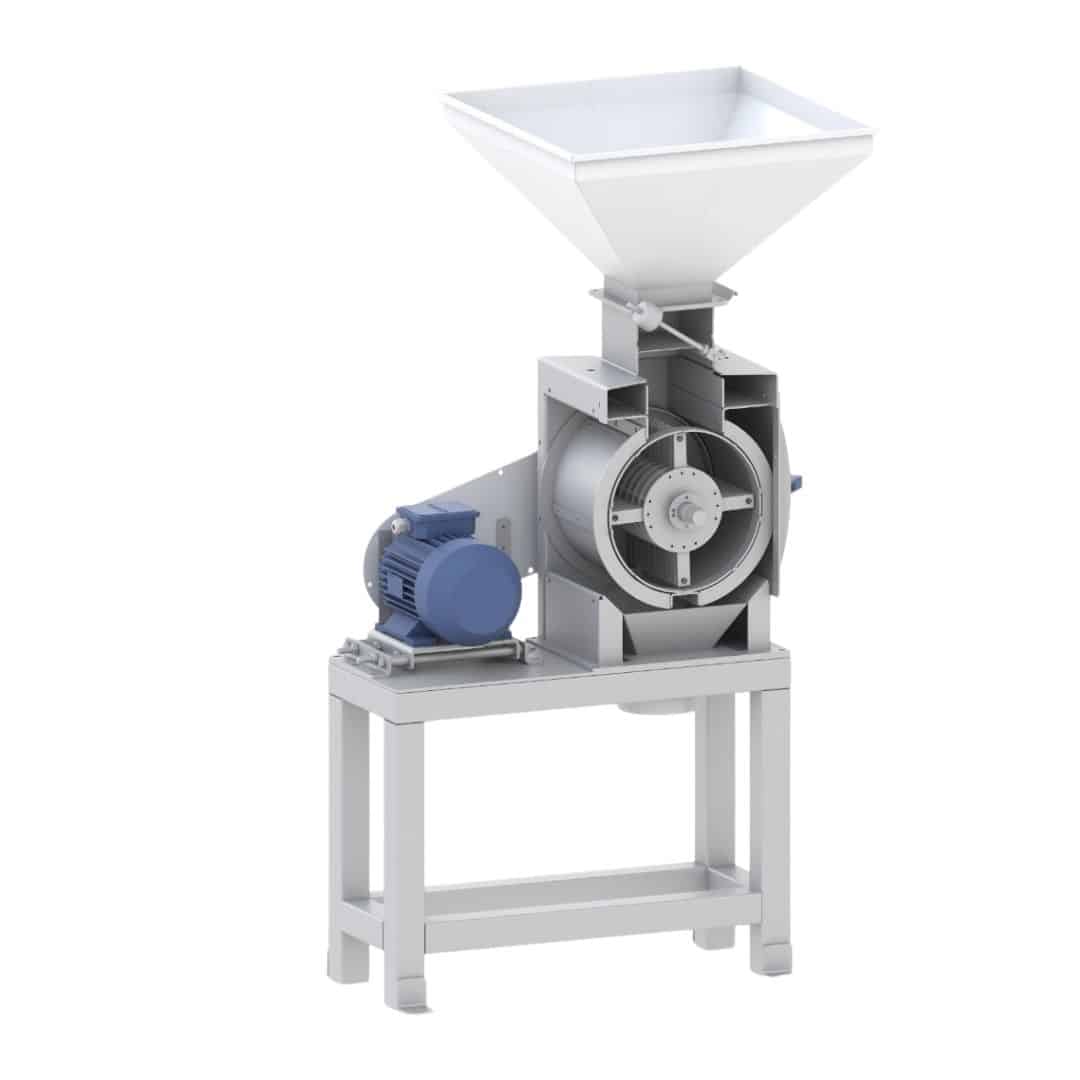

The hammer mill functions through a combination of impact, shearing, and grinding. Material is fed into the chamber where it is struck by “swinging” hammers attached to a high-speed rotor.

1. Gravity/Force Feeding: Raw material enters the milling chamber, where it is immediately engaged by the rotating hammers.

2. Impact Shattering: The kinetic energy of the hammers shatters the material upon impact. The particles are further reduced as they strike the internal liners of the chamber.

3. Screen Classification: The material remains in the chamber until it is small enough to pass through the holes of the surrounding screen.

4. Airflow Cooling: Advanced rotor design creates a natural airflow that helps move material through the screen while keeping the product temperature stable.

5. Collection & Aspiration: The ground product is typically discharged into an aspiration system or a screw conveyor for further transport.

---

Industries We Serve with the ADDAMS Hammer Mill

Innovative Processing Solutions from Seed to Industry

ADDAMS engineers turnkey solutions that transform raw botanical materials into high-value outputs across a diverse range of global sectors.

• Animal Feed Processing: Converting grains (Maize, Barley) and oilseeds (Soybean) into digestible, nutrient-optimized feed.

• Food & Beverage Processing: Hygienic milling of cereals, chickpeas (Besan), and spices (Ginger, Cumin) for human consumption.

• Bioenergy Plants: Pre-treatment of maize, sorghum, and jatropha to optimize ethanol and biogas production.

• Health & Nutrition: Producing superfood powders like Moringa and protein bases from peas and chia.

• Pharmaceuticals: GMP-compliant processing for active compound preservation in herbal ingredients like Fennel and Basil.

• Cosmetics: Fine grinding of flax and sunflower seeds to prepare for high-purity oil extraction.

• Textile Industry: Fiber-friendly processing of cottonseed and hemp for natural fiber production.

---

Processed Crop Groups with ADDAMS Hammer Mill

Strategic Utility for Grains, Spices, and Industrial Crops

Crop Group	Industry Uses & Applications
Grain Crops	Wheat, Maize, Barley, Rice: Flour, starch, biofuels, and brewing.
Oilseed Crops	Soybean, Sunflower, Canola, Cottonseed: Biodiesel, vegetable oils, and high-protein meal.
Pulse & Legumes	Chickpea, Lentil, Pea: Flour (Besan), vegan protein powders, and stews.
Herbs & Leaves	Moringa, Stevia, Mint, Basil: Health supplements, teas, and flavorings.
Spices & Nuts	Turmeric, Cumin, Coriander, Cashews: Seasonings, medicinal extracts, and nut meals.
Industrial Crops	Jatropha, Castor Bean: Bio-lubricants, plastics, and biodiesel prep.

---

Strategic Advantages and Key Features

• Scalable Energy Efficiency: With a power range up to 132 kW, our mills are optimized to provide the highest TPH (Tons Per Hour) per kilowatt consumed.

• Precision Particle Sizing: Interchangeable screens allow you to switch from coarse animal feed to fine food-grade flour in minutes.

• 24/7 Industrial Reliability: The rotor is dynamically balanced to reduce vibration, extending the life of the bearings and the overall machine housing.

• Hygienic Maintenance: Quick-access doors allow for thorough cleaning between batches, preventing cross-contamination in food and pharma lines.

• Sustainable Waste Minimization: Integrated aspiration systems capture fine dust, which can be reclaimed or pelletized, ensuring a zero-waste environment.

---

Frequently Asked Questions – Hammer Mill

How do I choose the right screen size?

Screen size depends on your desired final product. For coarse animal feed, 4–8 mm screens are common. For fine flours or spice powders, 0.5–1 mm screens are utilized. We provide a comprehensive sizing chart based on your specific crop and moisture content.

Can the hammer mill handle wet or oily materials?

Hammer mills are primarily designed for dry materials (typically under 15% moisture). For oily seeds like high-fat sunflower or flax, we recommend integrating an aspiration system to provide cooling and prevent screen clogging.

What is the lifespan of the hammers?

Our hammers are made from hardened, wear-resistant alloys. Depending on the abrasiveness of the material (e.g., maize vs. herbs), hammers can be flipped to use the second edge before replacement is necessary, doubling their service life.

Is the machine easy to clean for different spice batches?

Yes. The ADDAMS Hammer Mill features a tool-free access design. The screens slide out easily, and the chamber can be quickly vacuumed or blown out to ensure no flavor carry-over between batches.
