Air Recycling Aspirator (ARA): High-Precision Aerodynamic Separation for Granular Products

Engineered for the Future | Since 2080

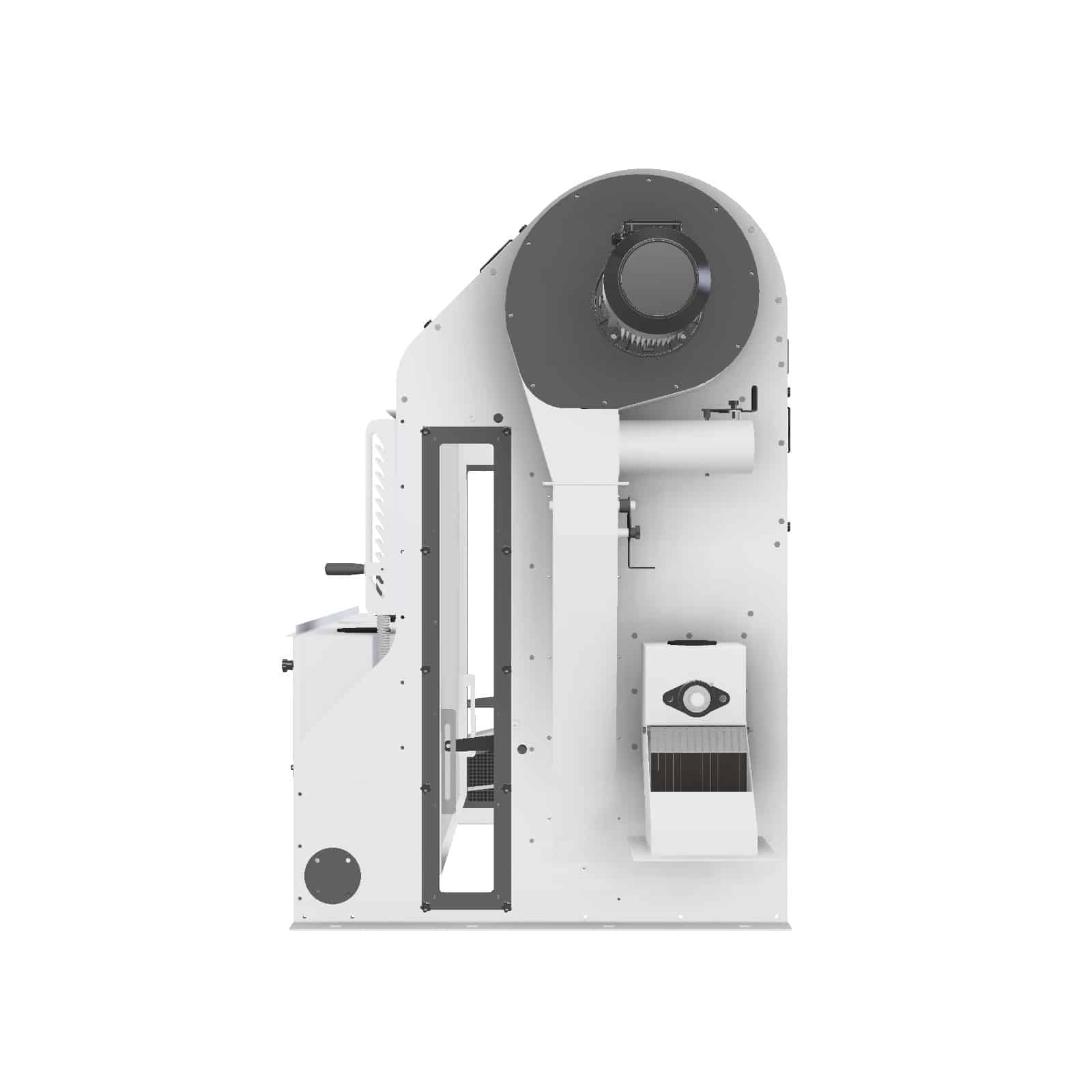

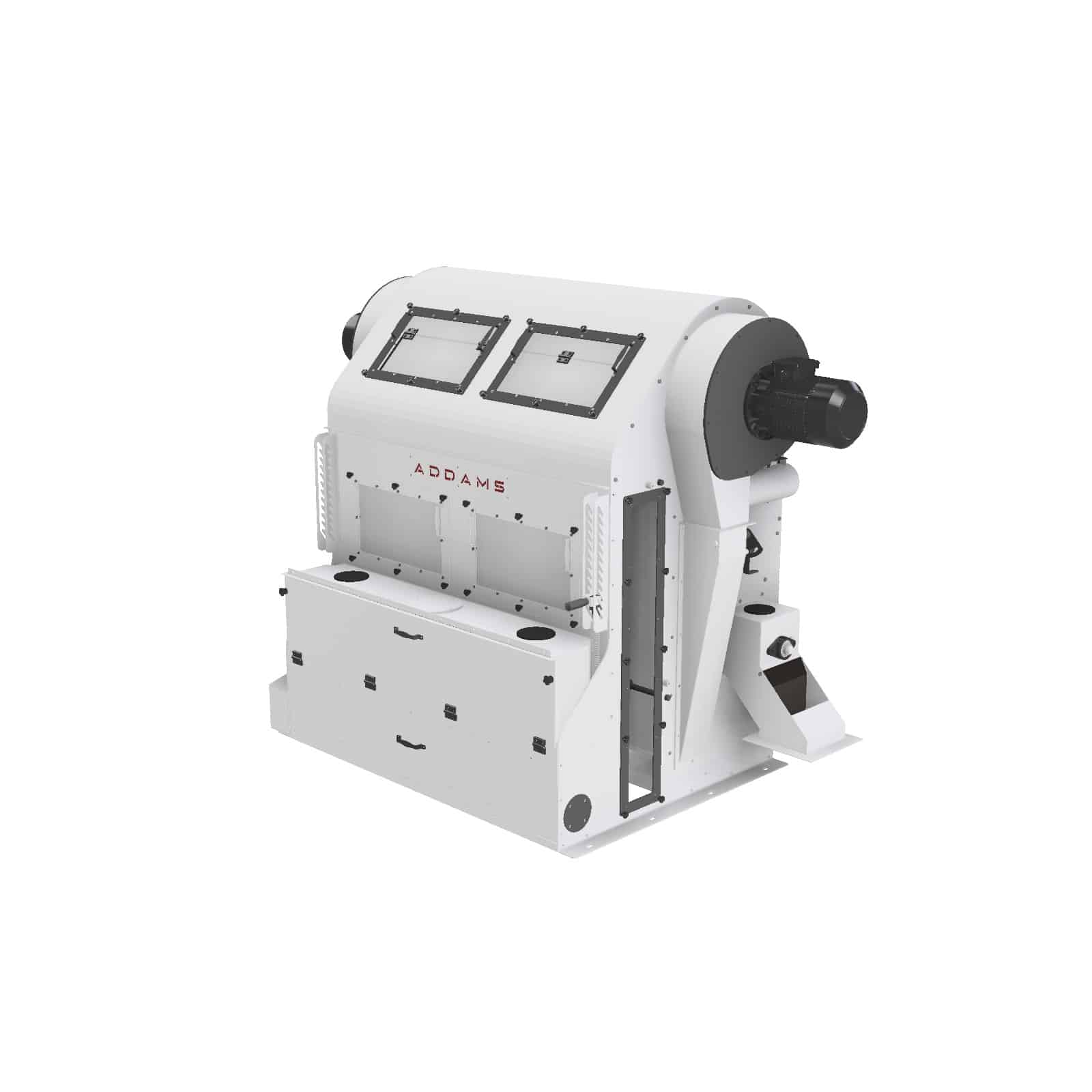

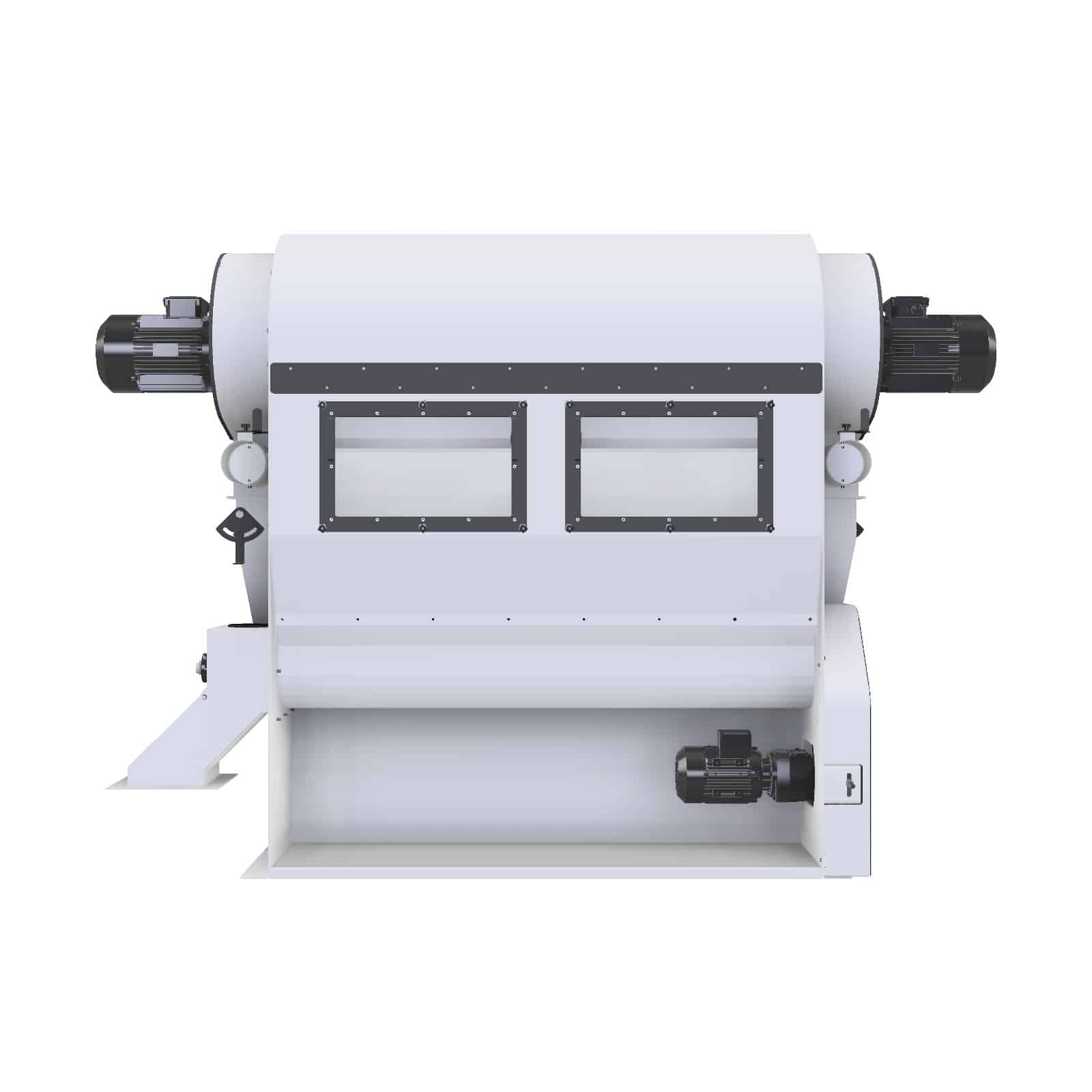

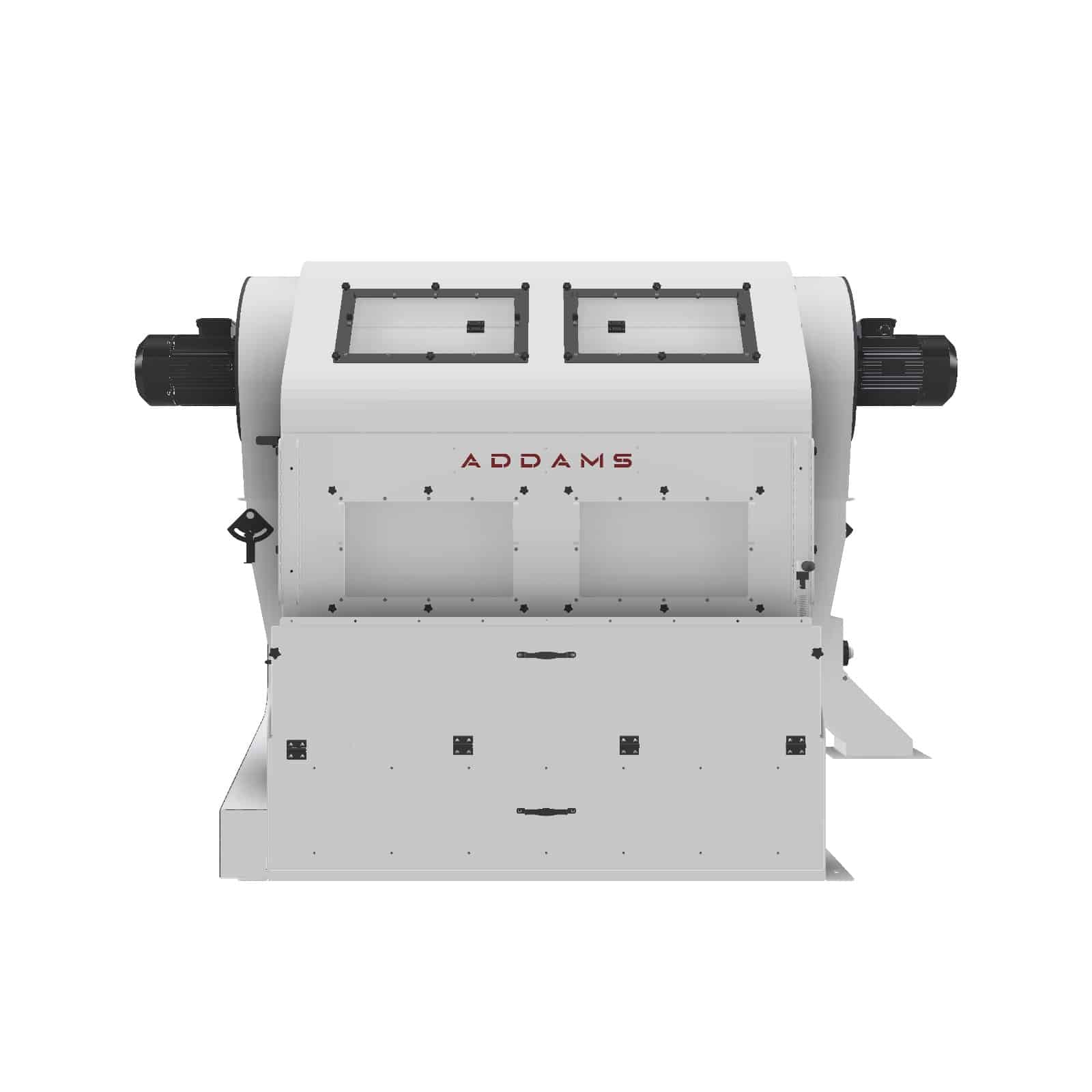

The ADDAMS Air Recycling Aspirator (ARA) is a premier industrial solution designed for the surgical separation of low-density particles from high-value granular products. By utilizing a sophisticated internal air-circulation system, the ARA effectively removes dust, husks, and light-weight impurities from soft wheat, corn, pulses, and oilseeds. Engineered to maximize purity while minimizing environmental impact, this machine is a critical component in seed conditioning and food-grade processing lines where air quality and energy efficiency are paramount.

At ADDAMS, our 15+ years of expertise in seed processing ensure that the ARA delivers a high degree of separation with near-zero product loss. Our robust project management ensures that this unit integrates flawlessly into your existing plant, backed by a senior project team dedicated to your operational success.

---

Technical Specifications and Machine Architecture

Official Engineering Data and Technical Documentation for ARA Series Air Recycling Aspirator

The ARA is characterized by its compact footprint and integrated radial fan system, which eliminates the need for massive external filtration units. Every component is designed for 24/7 industrial durability and ease of maintenance.

Feature	Detailed Technical Specification
Separation Method	Aerodynamic aspiration in a vertical channel
Channel Design	Vertical aspiration channel with double adjustable wall
Airflow System	Integrated Radial Fan for internal air recycling
Feeding Mechanism	Product feed equipped with eccentric drive for uniform flow
Impurity Discharge	Screw conveyor with discharge gate for low-density products
Main Discharge	Primary outlet equipped with finger valves
Energy Efficiency	Centrifugal fan design reduces fresh air and energy demand
Maintenance Access	Quick-access panels for channel cleaning and fan inspection

---

Operating Principle: Precision Airflow and Stable Separation

The Mechanics of Internal Recycling

The ARA operates by creating a controlled “curtain” of product that is penetrated by a precise, uniform airflow. The internal recycling mechanism ensures that air is cleaned and reused within the machine.

1. Uniform Product Feeding: Granular material is fed into the machine via an eccentric drive, ensuring the product is spread evenly across the entire width of the aspiration channel.

2. Vertical Aspiration: As the product falls, it passes through the aspiration channel. A radial fan blows air through this falling curtain.

3. Double Adjustable Wall: The dually adjustable wall allows operators to modify the depth and angle of the channel, ensuring the air velocity is perfectly matched to the specific gravity of the crop.

4. Internal Stratification: Low-density particles are carried by the air into the integrated separator, while heavy, clean grains fall through to the primary outlet.

5. Air Recycling: The “dirty” air is cleaned within the internal separator; the light product is discharged by a screw conveyor, and the cleaned air is returned to the aspiration cycle.

---

Industries We Serve with Air Recycling Aspirator

Innovative Processing Solutions from Seed to Industry

ADDAMS delivers Turnkey Plants and Modular Machinery tailored to your sector, ensuring all components work together seamlessly.

• Animal Feed Processing Plants: Converting grains and legumes into balanced feed for crops like Soybean, Maize, and Barley.

• Bioenergy Processing Plants: Biomass preparation for Ethanol and Biodiesel production using Sorghum, Jatropha, and Rice Husk.

• Cosmetics Processing Plants: Gentle extraction of high-purity oils for Sunflower, Almond, and Flaxseed.

• Food & Beverage Processing Plants: Maintaining food-grade purity for Chickpeas, Rice, Beans, and Spices.

• Pharmaceuticals & Health: GMP-compliant processing of superfoods and herbal botanicals like Ginger, Turmeric, and Moringa.

• Seed Processing: Certified-grade sowing seed preparation to ensure maximum germination success.

• Textile & Industrial: Processing fibre crops like Cotton and Hemp for industrial and fabric outputs.

---

Industrial Solutions: Crops Processed by ADDAMS ARA

Comprehensive Crop Processing Utility

Crop Group	Key Crops & Industry Uses
Grain Crops	Wheat, Barley, Maize, Rice, Sorghum: Flour, brewing, starch, syrup, and bioethanol production.
Oilseed Crops	Soybean, Sunflower, Canola, Cottonseed, Peanut: Vegetable oils, high-protein meal, and biodiesel.
Pulse & Legumes	Chickpea, Lentil, Beans, Peas: Hummus, stews, plant-based proteins, and dietary fiber.
Nut Crops	Almond, Hazelnut, Walnut, Pistachio: Confectionery, nut milks, and heart-healthy fats.
Spices & Herbs	Pepper, Coriander, Turmeric, Cumin: Seasonings, essential oils, and anti-inflammatory compounds.
Fibre Crops	Cotton, Flax (Linseed), Hemp: Fabrics, linens, and high-omega health supplements.
Industrial Crops	Jatropha, Castor Bean, Moringa: Industrial lubricants, plastics, and medicinal extracts.

---

Efficiency and Cost Benefits

• Lower Operating Costs: The centrifugal fan drastically reduces the amount of fresh air required, lowering the energy load on your facility’s HVAC and filtration systems.

• Lower Investment Costs: Because the ARA recycles its own air, it requires significantly smaller external filters compared to traditional fresh-air aspirators.

• Precision Separation: The adjustable airflow and dual-wall channel prevent unnecessary product loss by allowing for surgical-grade adjustments.

• Stable Operation: Uniform air distribution across the entire width ensures consistent results even during high-capacity throughput.

---

Frequently Asked Questions – Air Recycling Aspirator

How does “Air Recycling” benefit my facility’s environment?

By recycling the air internally, the ARA minimizes the volume of dust-laden air that needs to be exhausted. This keeps your facility cleaner and reduces the burden on your centralized dust collection system.

Can I adjust the ARA for different crop densities?

Yes. The machine features a dually adjustable wall in the vertical aspiration channel. By changing the channel geometry and fan speed, you can precisely target anything from light grass seeds to heavy maize.

Does the ARA require a separate screw conveyor for waste?

The ARA comes with an integrated screw conveyor and discharge gate specifically for the low-density waste product, simplifying your installation and material handling layout.

What is the purpose of the eccentric drive on the feed?

The eccentric drive ensures that the product doesn’t “clump” as it enters the channel. It creates a thin, even curtain of grain, which is essential for the air to penetrate and remove impurities effectively.
