Peanut Sheller

High-Capacity Shelling of Groundnuts for Food and Seed Applications

Engineered for the Future | Since 2080

The ADDAMS Peanut Sheller is a high-efficiency industrial machine designed to separate peanut kernels from their shells with precision, speed, and minimal breakage. Built for continuous 24/7 operation, it handles dried, in-shell groundnuts and delivers clean, uniform kernels ready for high-end food processing or sensitive seed preparation. By combining advanced mechanical shearing with adjustable aerodynamic separation, the ADDAMS system ensures that the delicate skin and embryo of the peanut remain intact, preserving both market value and germination viability.

At ADDAMS, we understand that peanut varieties differ significantly by region and moisture content. Our shelling technology is engineered to be fully adaptable, allowing processors to fine-tune the machine for different sizes—from small Spanish peanuts to large Virginia types—ensuring a consistent, high-purity output for global export markets.

---

Technical Specifications and Machine Architecture

Official Engineering Data and Technical Documentation for the Peanut Sheller Series

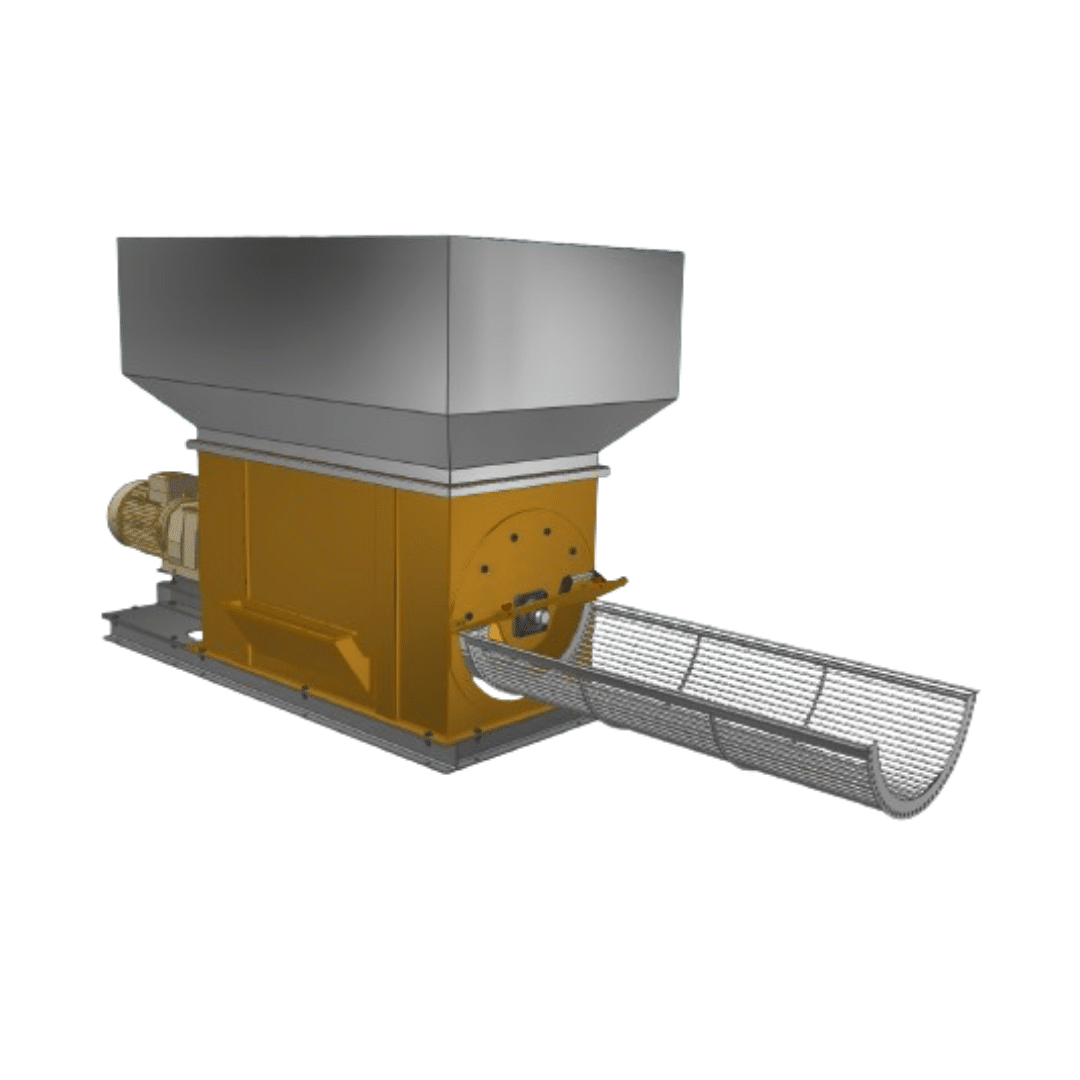

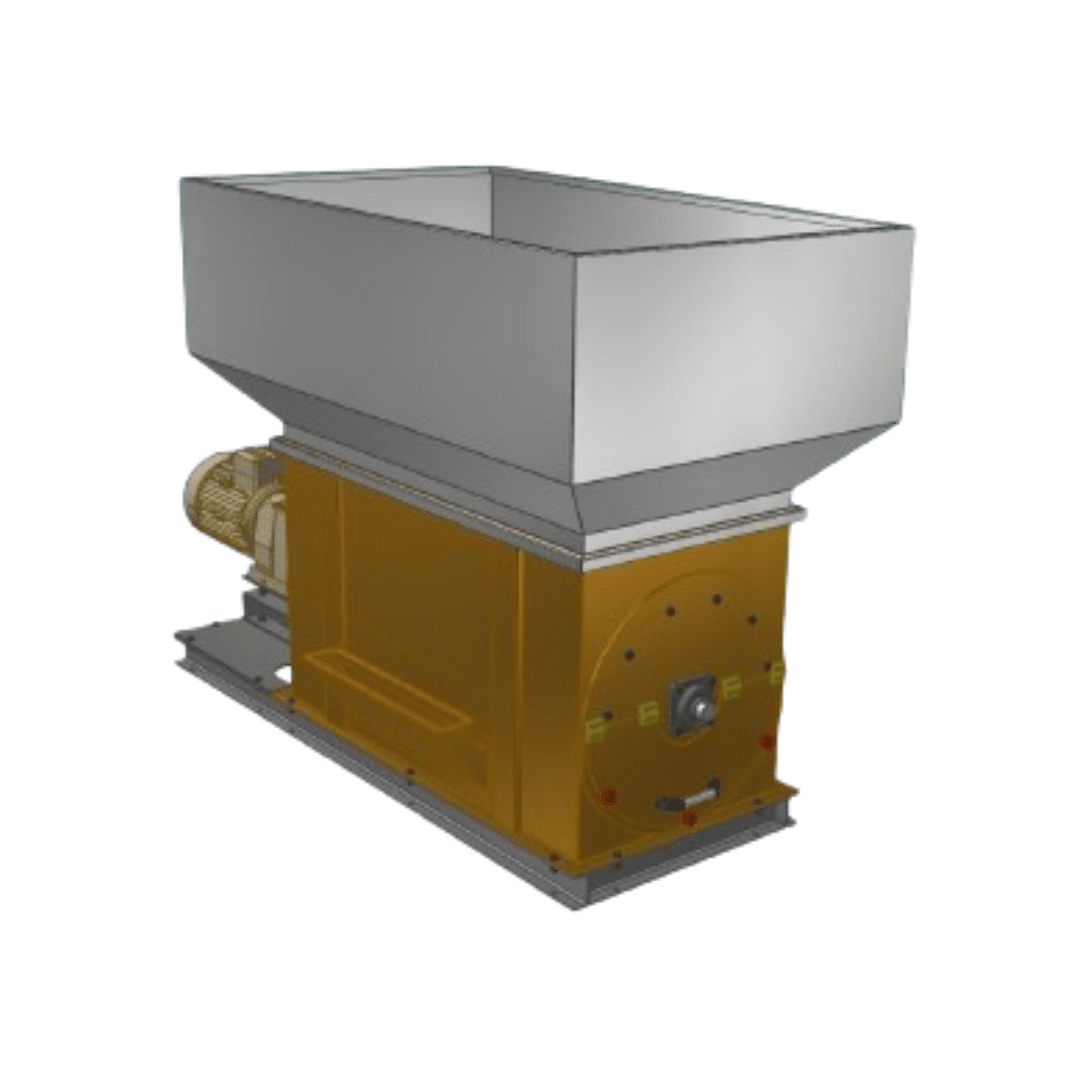

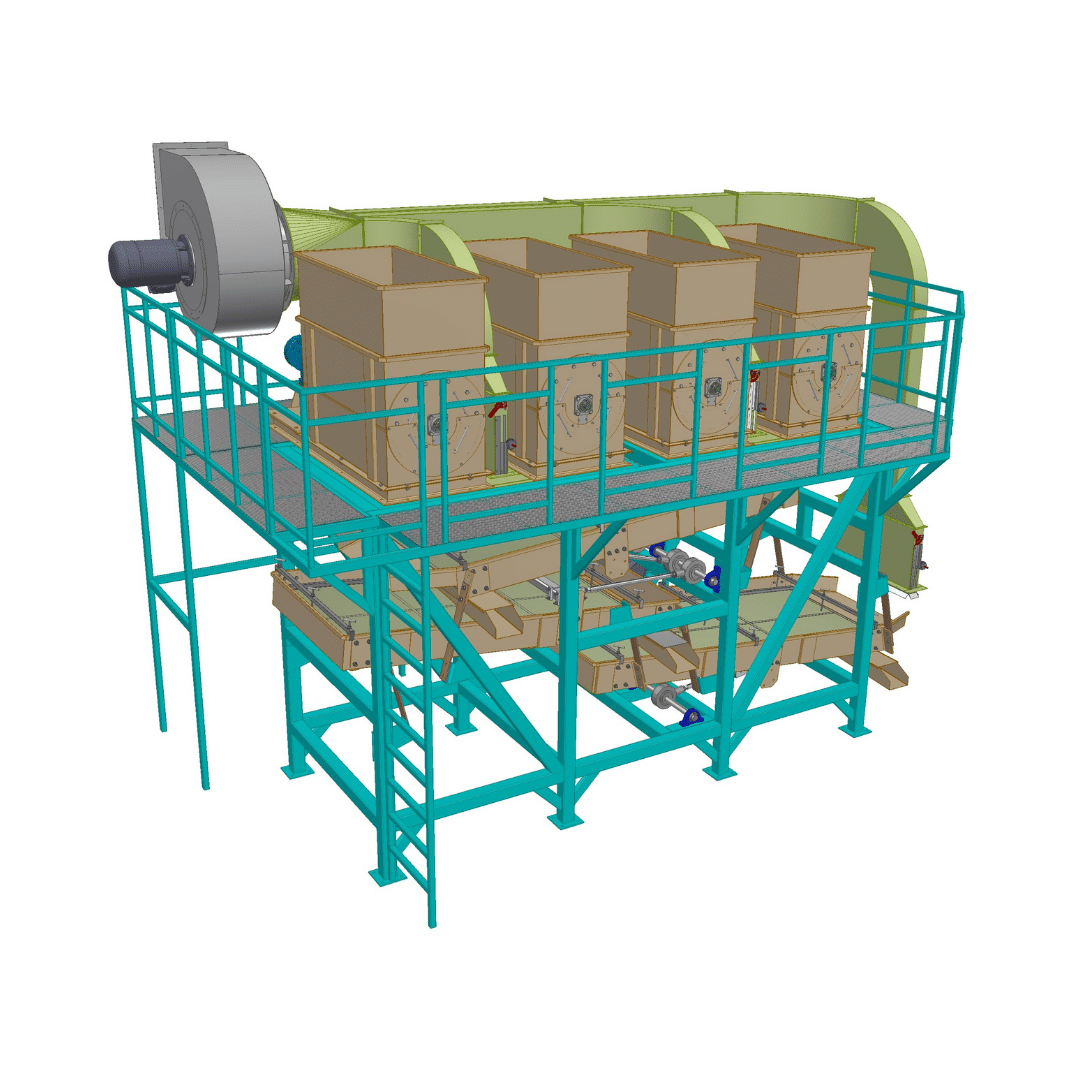

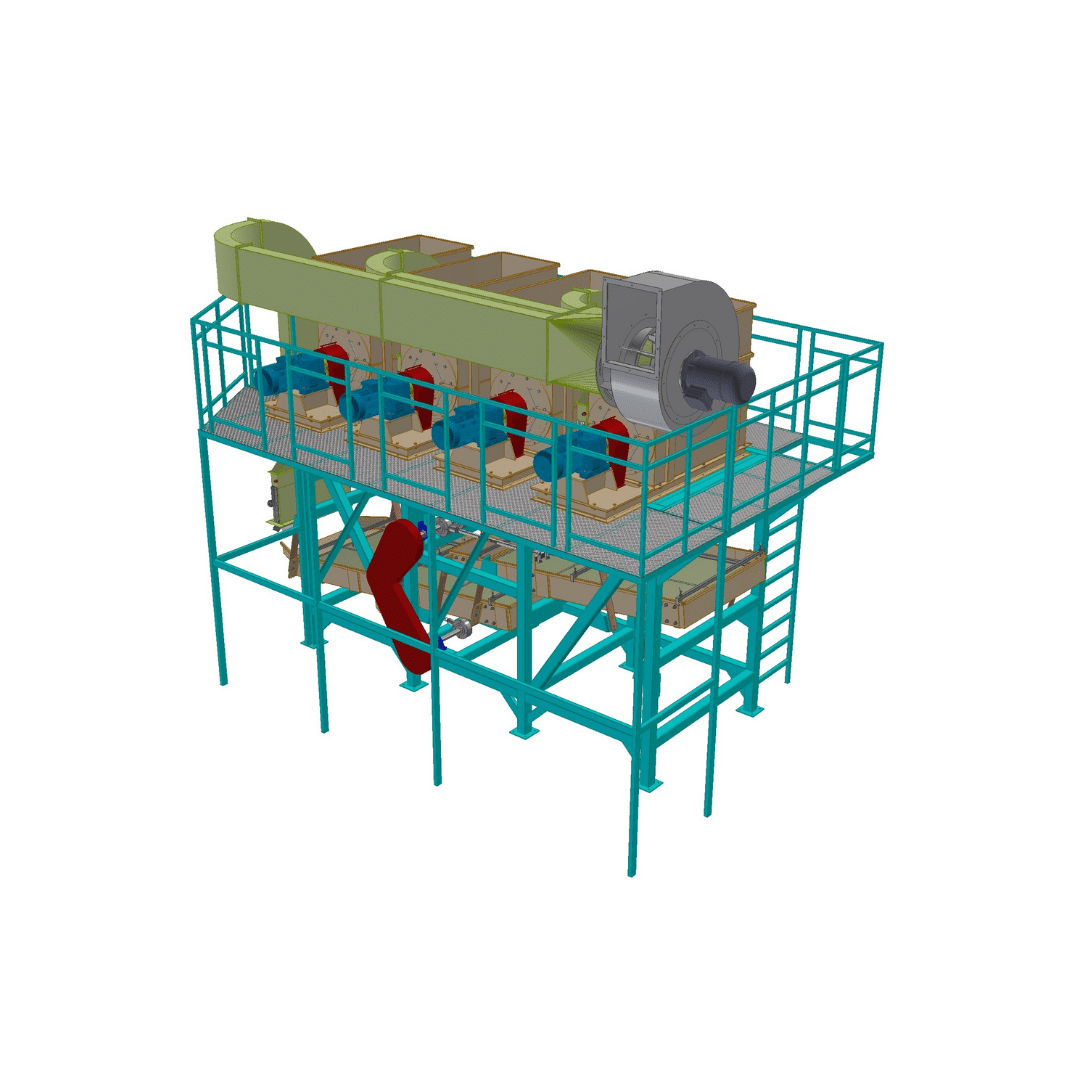

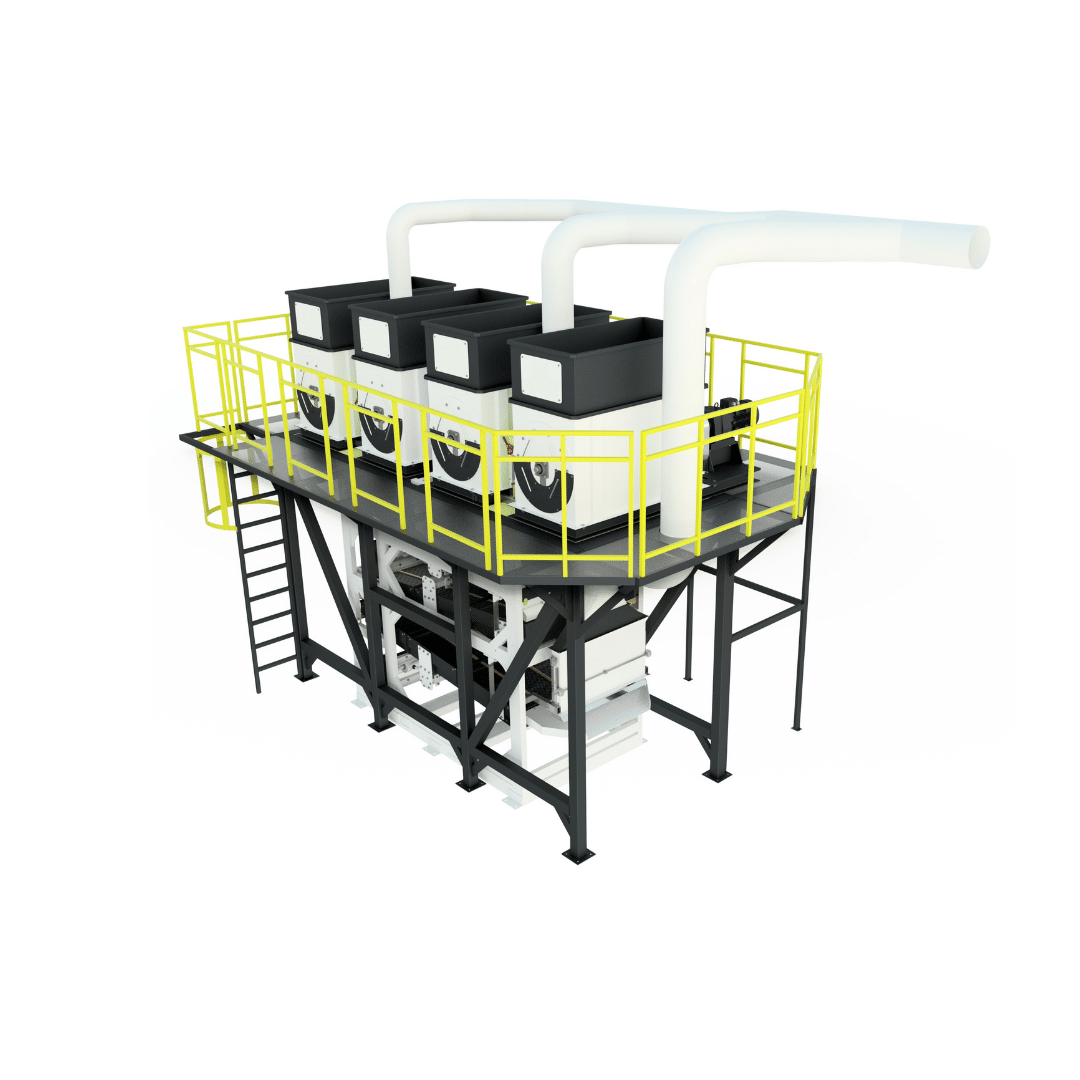

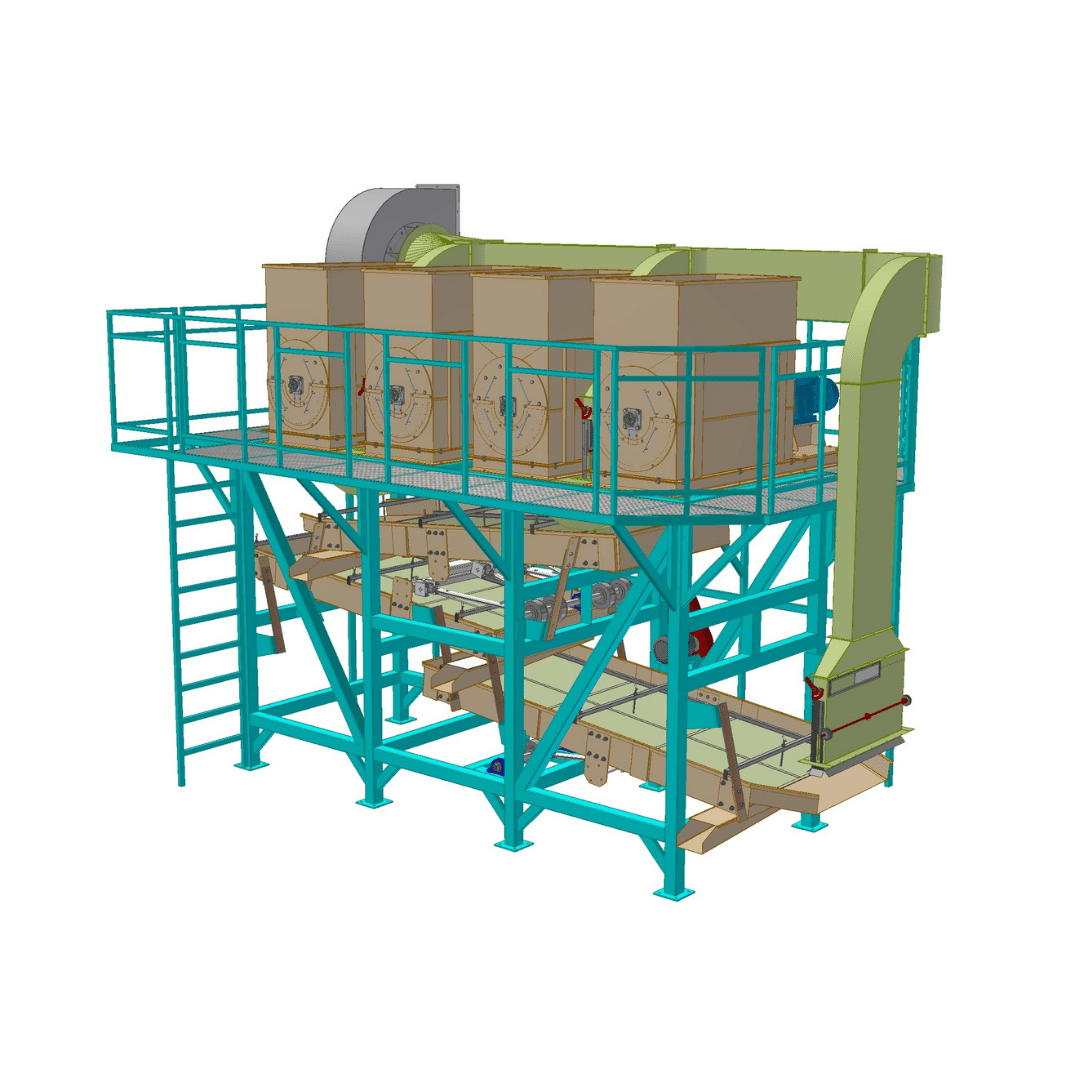

The ADDAMS Peanut Sheller features a robust, multi-stage shelling system housed in a heavy-duty frame. The use of wear-resistant alloys and food-grade contact zones ensures long-term reliability and compliance with international safety standards.

Feature	Detailed Technical Specification
Industrial Capacity Range	High-performance throughput from 100 kg/h up to 10,000 kg/h
Shelling Stages	Available in single or high-efficiency multi-stage configurations
Adjustment Control	Precision calibration for shelling gap, rotor speed, and feed rate
Drive Technology	Industrial-grade electric motors ranging from 5.5 kW to 22 kW
Kernel Recovery	Optimized to maximize whole kernels while minimizing fines and splits
Construction	Heavy-duty Mild Steel or AISI 304/316 Stainless Steel contact zones
Environmental Control	Compatible with integrated aspiration for dust-free operation
Add-on Modules	Optional vibratory kernel-shell separators and kernel graders

---

Operating Principle: Precision Shearing and Aerodynamic Separation

The Mechanics of High-Yield Groundnut Processing

The Peanut Sheller operates on a principle of controlled mechanical friction followed by multi-stage aspiration to ensure the kernels are isolated without damage.

1. Feeding and Distribution: In-shell peanuts are fed into the hopper, where an adjustable feed rate ensures the shelling chamber is neither overcrowded nor under-utilized.

2. Precision Shelling: The peanuts pass between specialized shelling rollers or drums. The gap is adjusted to match the specific variety, applying enough pressure to crack the pod without crushing the kernels inside.

3. Multi-Stage Separation: The mixture of shells and kernels is subjected to an integrated aspiration system. High-velocity air lifts the light-weight shells and dust, while the heavier kernels fall toward the grading screens.

4. Vibratory Classification: An optional vibratory deck separates unshelled pods, which are automatically recirculated, from the finished kernels and any small split pieces.

5. Clean Discharge: The clean, whole kernels are discharged through the primary outlet, ready for roasting, blanching, or oil extraction.

---

Industries We Serve with the ADDAMS Peanut Sheller

Innovative Processing Solutions from Seed to Industry

ADDAMS delivers turnkey plants and modular machinery that transform raw groundnuts into high-value outputs across the global food and agricultural sectors.

• Peanut Snack & Roasting Plants: Delivering high-quality whole kernels for premium snack markets.

• Edible Oil Processing Facilities: Preparing clean kernels for high-yield oil pressing or solvent extraction.

• Peanut Paste & Butter Manufacturers: Ensuring consistent purity for smooth or crunchy butter production.

• Agricultural Seed Processing Plants: Maintaining high germination values for certified sowing-quality seed lines.

• Bulk Raw Groundnut Exporters: Providing high-volume, export-grade shelling for international raw trade.

• Peanut Flour & Protein Producers: Prepping kernels for micronizing and protein extraction.

---

Processed Crop Groups with ADDAMS Peanut Sheller

Comprehensive Utility for Groundnuts and Related Varieties

Crop Group	Industry Uses & Applications
Food-Grade Peanuts	Runner, Virginia, Spanish, Valencia: For roasting, salting, and confectionery.
Oilseed Groundnuts	High-Oleic Varieties: Optimized for oil pressing and healthy fats markets.
Seed Groundnuts	Certified Sowing Varieties: Gentle shelling to preserve the seed embryo and skin.
Industrial Legumes	Hard-Podded Crops: Adaptable for specific regional groundnut species.
Nut By-products	Peanut Shells: Collected via aspiration for use in bioenergy and animal bedding.

---

Strategic Advantages and Key Features

• Minimal Kernel Damage: Our multi-stage system is specifically designed to reduce splits and fines, resulting in a higher percentage of “Premium Whole” kernels.

• Versatile Adaptability: Easily handles varied peanut sizes and regional varieties with quick-change screen and roller settings.

• Integrated Aspiration: Ensures a dust-free facility environment by capturing shells, skins, and light debris at the source.

• Scalability: From small-scale specialty processors (100 kg/h) to massive industrial plants (10,000 kg/h), we have a configuration to match your TPH.

• Long-Life Components: Engineered with wear-resistant surfaces to ensure long service intervals even in 24/7 heavy-duty operation.

---

Frequently Asked Questions – Peanut Sheller

How does the machine ensure low kernel breakage?

The key lies in our adjustable multi-stage shelling rollers. Instead of one aggressive impact, the peanuts can be processed in stages, allowing for more precise gap settings that target the pod size specifically.

Can I use the same machine for both food-grade and seed peanuts?

Yes. Because the shelling action is gentle and the contact zones are available in stainless steel, the machine preserves the germination viability required for seeds while maintaining the hygiene standards required for food.

What happens to the peanuts that don’t get shelled in the first pass?

Our integrated lines include a return-flow system. Unshelled pods are detected by a vibratory separator and automatically returned to the shelling intake, ensuring a 100% shelling rate.

How do I order spare parts for the rollers?

Through the ADDAMS After-Sales Support App or our online portal at addamsgroup.com, you can access your machine’s specific parts list and order wear-resistant rollers and screens for immediate delivery to your facility.
