Impact Dehuller

High-Speed Dehulling for Sunflower, Millet, Oats, and Pulses

Engineered for the Future | Since 2080

The ADDAMS Impact Dehuller is a high-velocity industrial machine designed to separate seed hulls from kernels through precise centrifugal acceleration. This specialized dehulling solution is engineered to handle tough outer husks for sunflower seeds, millets, oats, and various oilseeds with surgical accuracy. By directing seeds against a strategically positioned impact ring at high speeds, the machine creates a uniform stress point that cracks the hull while preserving the integrity of the inner kernel.

At ADDAMS, we prioritize scalability and industrial endurance. Our Impact Dehullers are designed to operate within high-capacity turnkey lines, offering a low-maintenance, high-yield solution for global processors of ancient grains and oilseeds. Whether producing edible sunflower kernels or preparing hemp for nutraceutical extraction, our impact technology delivers the clean results necessary for modern food-grade standards.

---

Technical Specifications and Machine Architecture

Official Engineering Data and Technical Documentation for the Impact Dehuller Series

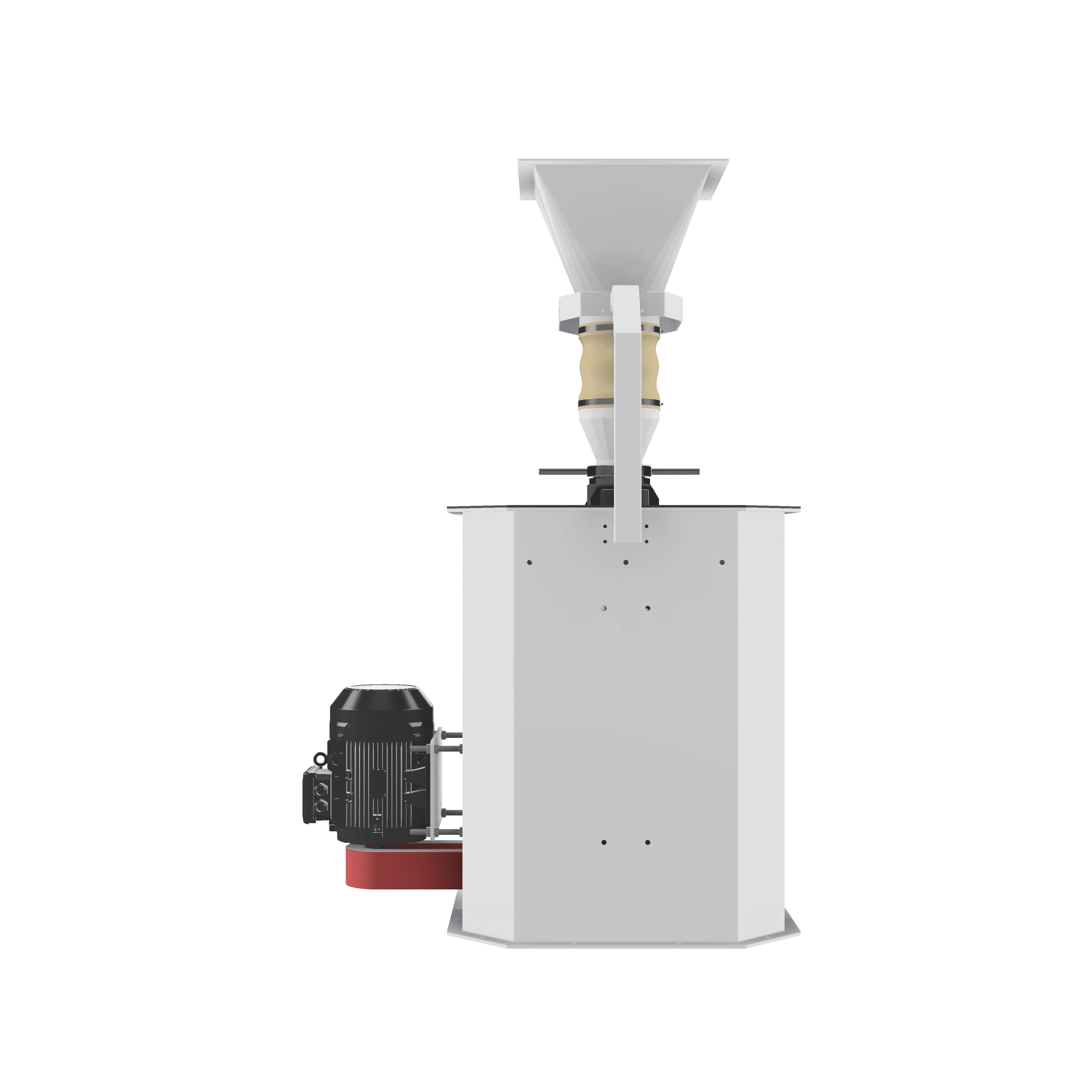

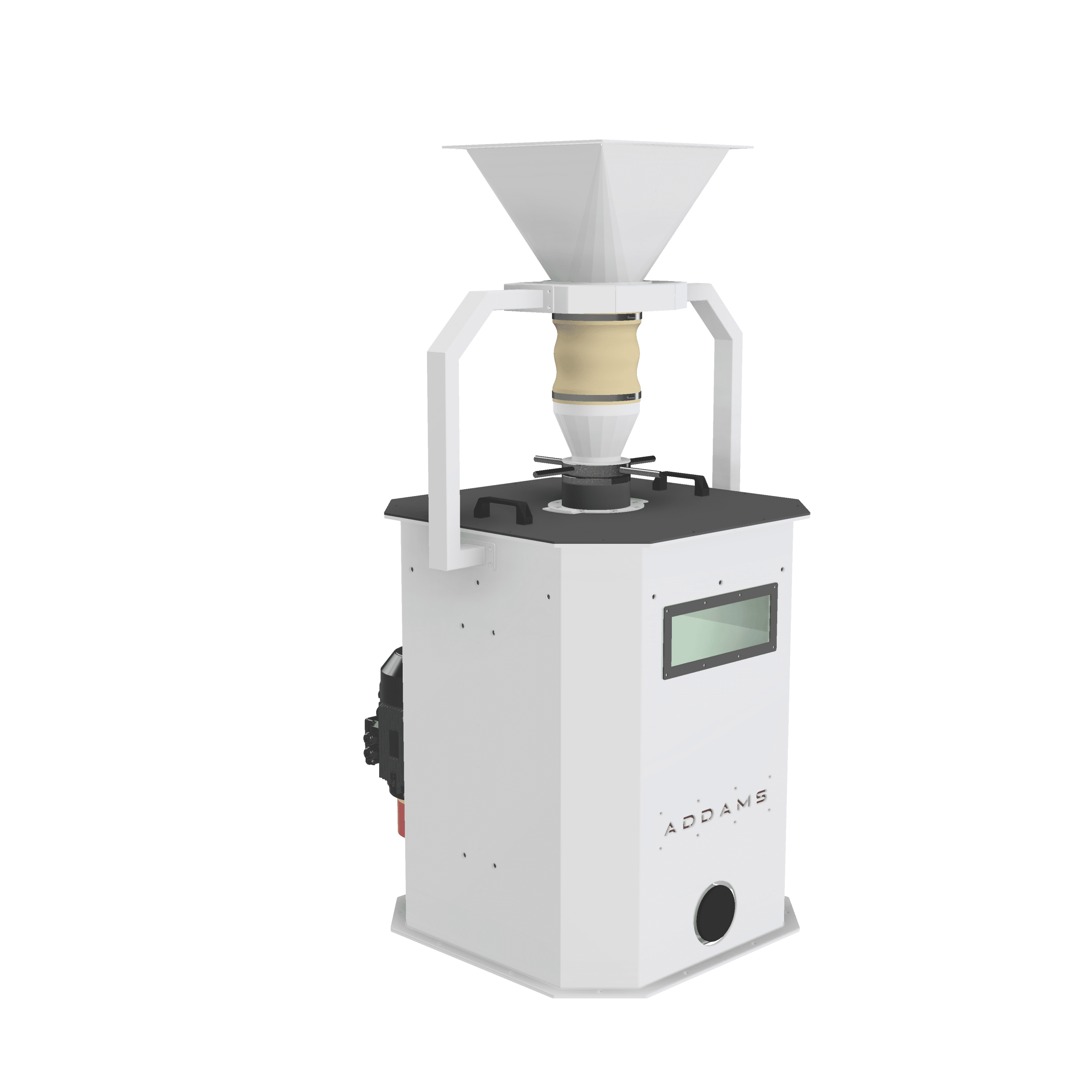

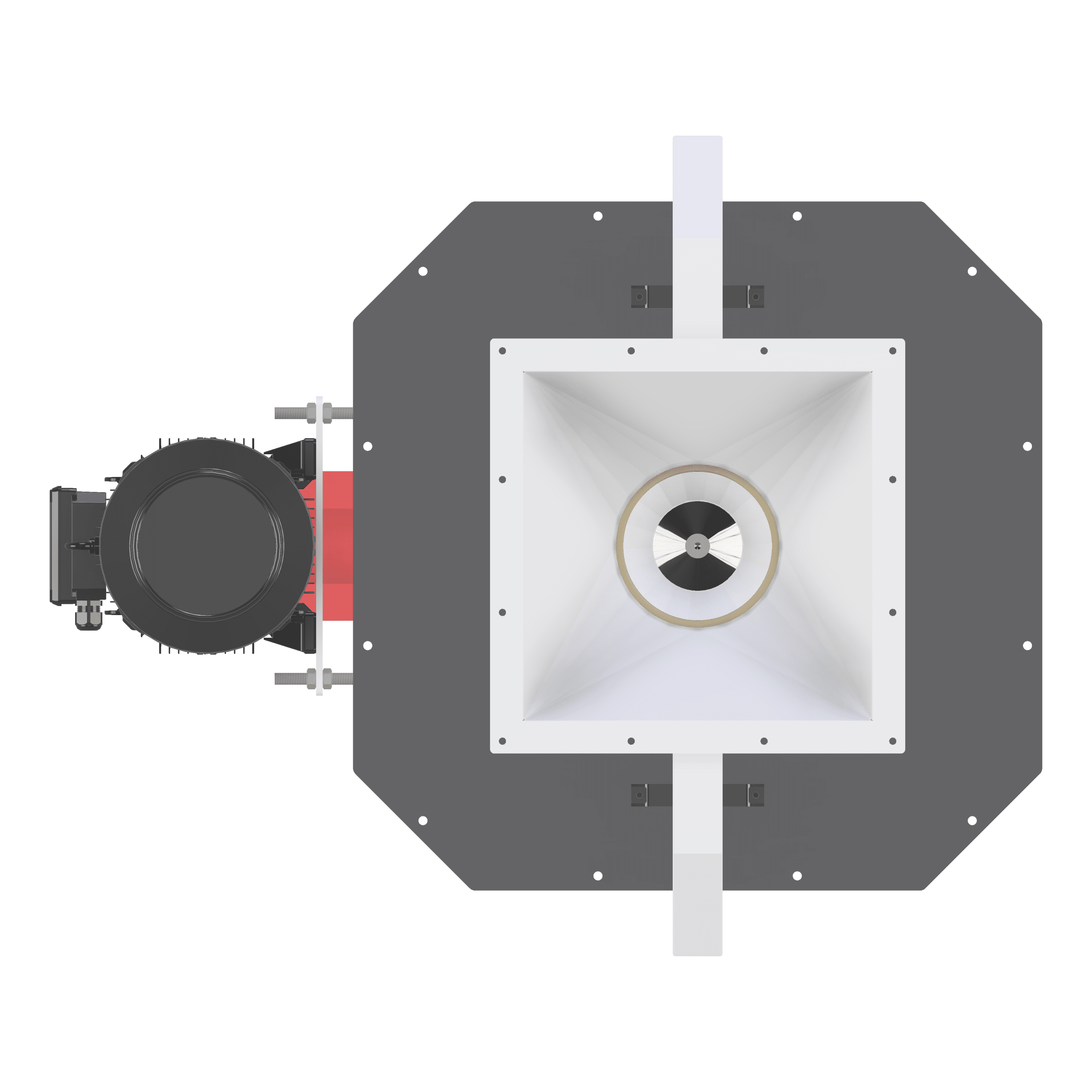

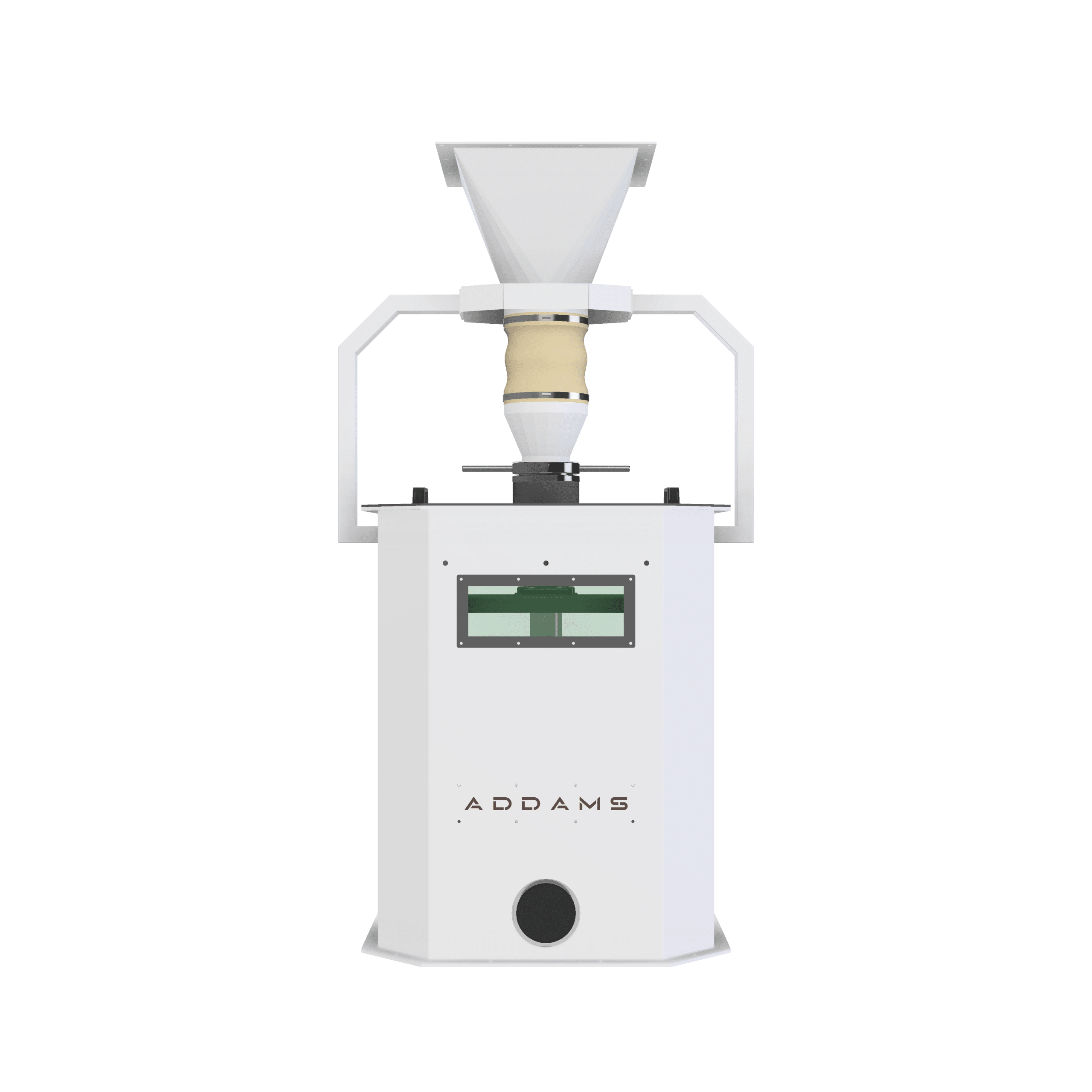

The ADDAMS Impact Dehuller is built for heavy-duty industrial environments, featuring a high-speed rotor and a modular impact chamber. To ensure longevity against abrasive crops, the internal impact rings are available in multiple alloy grades.

Feature	Detailed Technical Specification
Industrial Capacity Range	High-performance throughput from 50 kg/h up to 6,000 kg/h
Rotor Speed	Precision-controlled up to 3,600 RPM
Impact Technology	Centrifugal acceleration with adjustable impact force
Drive Technology	Industrial electric motors ranging from 7.5 kW to 30 kW
Impact Ring Options	Specialized Alloy Steel or Tungsten Carbide for abrasive crops
Construction	Heavy-duty Carbon Steel or AISI 304/316 Stainless Steel
Maintenance	Quick-access layout for rapid rotor and ring replacement
Dust Control	Fully compatible with integrated ADDAMS aspiration systems

---

Operating Principle: Centrifugal Impact Dynamics

The Mechanics of High-Speed Hull Separation

The dehulling process relies on the kinetic energy of the seed being accelerated from the center of the rotor toward the stationary impact surface.

1. Feeding and Centering: Raw material enters the center of the high-speed rotor. Centrifugal force immediately accelerates the seeds outward along the rotor vanes.

2. High-Velocity Impact: The seeds are flung at precise angles against a hard impact ring. The kinetic energy is concentrated on the hull, causing it to shatter or crack.

3. Kernel Preservation: By fine-tuning the rotor RPM via variable frequency drives (VFD), the impact force is set just high enough to break the hull but low enough to keep the kernel intact.

4. Mixed Discharge: The machine outputs a mixture of free kernels, detached hulls, and a small percentage of unhulled material.

5. Post-Dehulling Separation: The output is typically directed into an aspiration system or a hull-kernel separator to isolate the clean kernels for further processing.

---

Industries We Serve with the ADDAMS Impact Dehuller

Innovative Processing Solutions from Seed to Industry

ADDAMS delivers turnkey plants and modular machinery that transform raw hulled seeds into high-value outputs for various sectors.

• Sunflower Kernel Processing: Delivering high-purity edible kernels for the baking and snack industries.

• Millet & Ancient Grain Lines: Dehulling Foxtail, Barnyard, and Kodo millets for organic food markets.

• Oat Groat & Flake Production: Preparing oats for high-capacity groat milling and flaking.

• Hemp Dehulling Plants: Isolating hemp hearts for nutraceuticals and clean-label food ingredients.

• Bio-oil & Nutraceuticals: Preparing oilseeds like Safflower for high-yield oil pressing.

• Specialty Flour Milling: Removing buckwheat hulls before flour production to maintain color and purity.

---

Processed Crop Groups with ADDAMS Impact Dehuller

Specialized Utility for Fibrous and Hard-Hulled Varieties

Crop Group	Industry Uses & Applications
Oilseeds	Sunflower, Hemp, Safflower: For edible kernels, high-protein meals, and bio-oils.
Ancient Grains	Millets (Foxtail, Kodo, Barnyard): High-nutrition gluten-free grains.
Cereal Crops	Oats, Buckwheat, Spelt: For groats, flakes, and specialty flour production.
Pulses & Legumes	Lentils, Specialized Peas: Removing tough outer skins for faster cooking times.
Industrial Crops	Hulled Biofuel Seeds: Preparing biomass and kernels for chemical extraction.

---

Strategic Advantages and Key Features

• Maximum Yield Efficiency: Adjustable parameters allow for the highest possible ratio of whole kernels, significantly reducing the production of fines and dust.

• Variable Intensity Control: The ability to adjust rotor speed up to 3,600 RPM ensures the machine can handle everything from fragile millet to tough sunflower husks.

• Wear-Resistant Engineering: Optional tungsten carbide impact rings extend the service life of the machine, even when processing highly abrasive materials.

• Modular Integration: Designed to fit perfectly with ADDAMS pre-cleaners, gravity separators, and color sorters for a complete “farm-to-bag” solution.

• Easy Maintenance Access: The simplified layout allows operators to inspect and replace the impact ring in minutes, minimizing downtime during peak seasons.

---

Frequently Asked Questions – Impact Dehuller

How do I prevent the kernels from breaking during the impact?

The key is rotor speed synchronization. We provide a speed-to-crop chart that allows you to set the RPM exactly at the threshold where the hull breaks but the kernel remains safe. Using a VFD (Variable Frequency Drive) allows for these micro-adjustments in real-time.

What happens to the seeds that don’t get dehulled?

In a standard industrial line, the output of the Impact Dehuller is sent to a separator. The unhulled seeds are isolated and automatically recirculated back into the dehuller to ensure a 100% total yield.

Can the machine handle different moisture contents?

Yes, however, for optimal results, seeds should be dried to a specific moisture level (typically 8-10%) to ensure the hulls are brittle enough to crack upon impact. Our technical team can assist you in setting these pre-conditioning parameters.

Is the Impact Dehuller suitable for food-grade processing?

Absolutely. We offer stainless steel variants that meet all international hygiene standards for organic and food-grade ancient grain processing.
