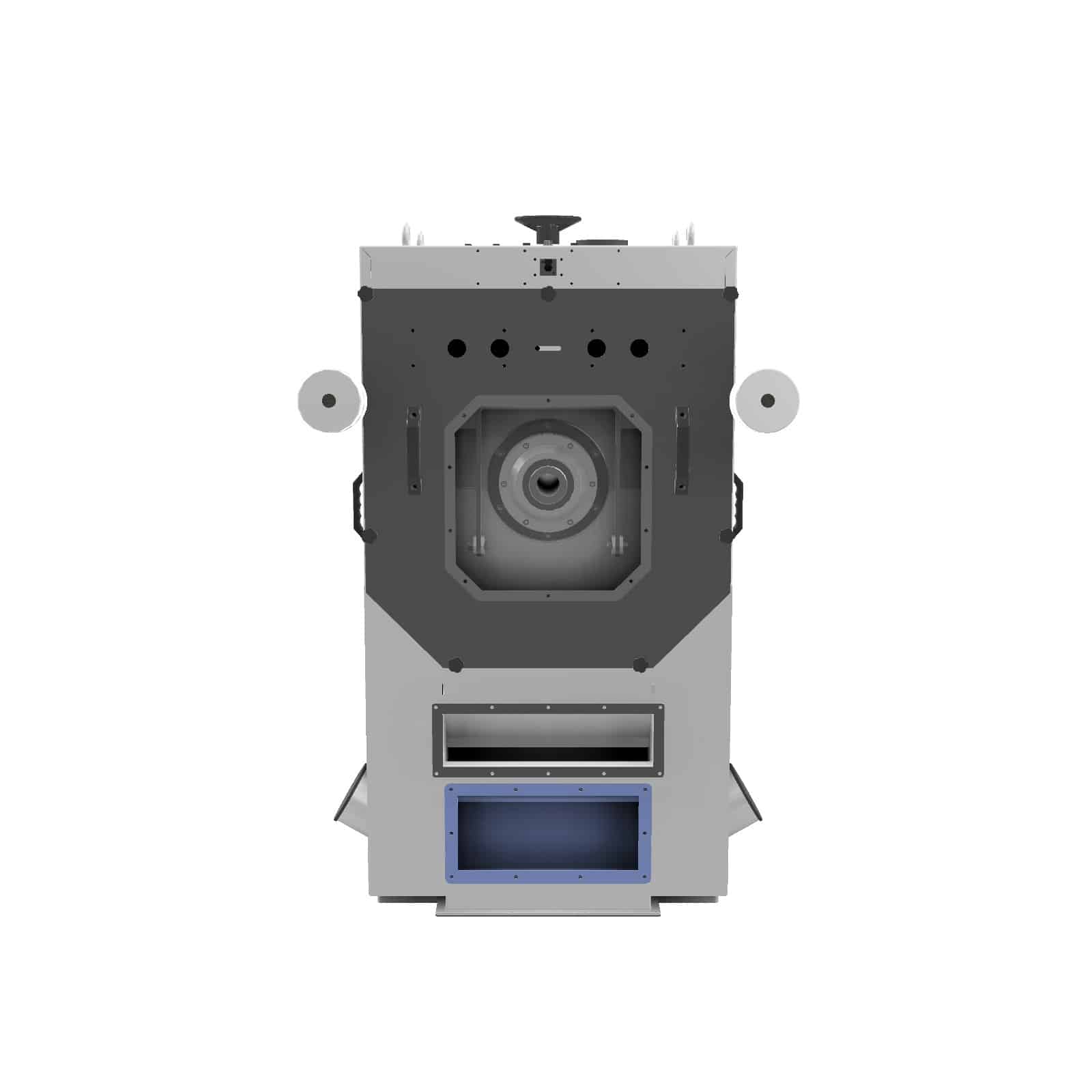

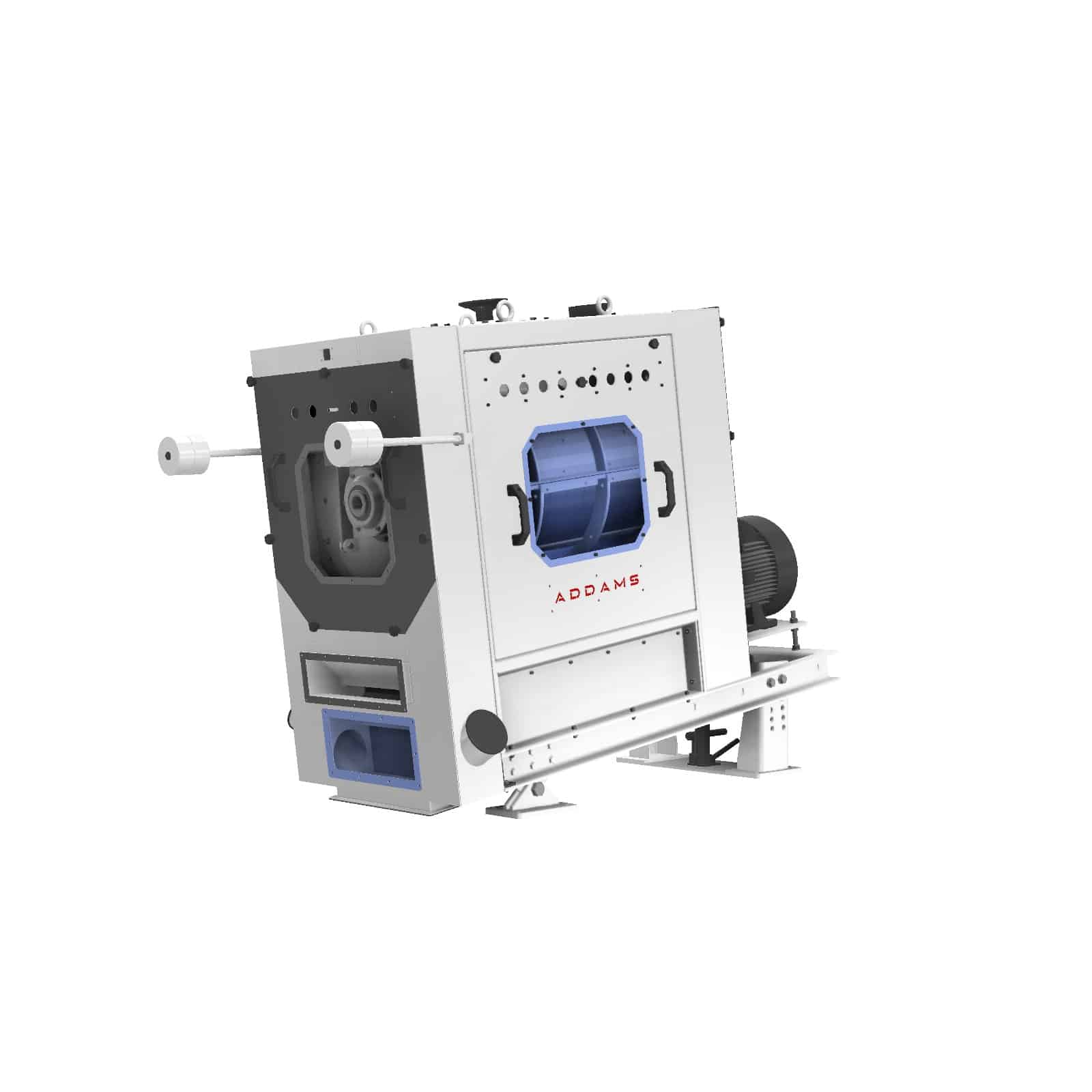

Abrasive Roller Huller

Abrasive Roller Huller: Maximum Output, Minimum Waste

Engineered for the Future | Since 2080

The ADDAMS Abrasive Roller Huller is a high-performance industrial dehulling machine engineered for the precision removal of seed coats, husks, and hulls from pulses, grains, and oilseeds. Utilizing a controlled abrasive friction process, the machine gently rubs away the outer layers without compromising the core kernel. This technology ensures maximum hulling efficiency while keeping breakage to an absolute minimum, making it a critical component for value-added food production lines and industrial oil extraction units.

Designed for continuous 24/7 operation, the ADDAMS Abrasive Huller is the industry standard for producing split pulses (dal), pearled barley, and pre-polished grains. By combining rugged construction with fine-tuned adjustability, it empowers processors to achieve superior product purity and higher market value for their outputs.

---

Technical Specifications and Machine Architecture

Official Engineering Data and Technical Documentation

The ADDAMS Abrasive Roller Huller features specially coated carborundum or emery rollers that provide consistent friction under controlled pressure. The machine’s rigid frame and high-torque drive system are designed for the most demanding industrial environments.

Feature	Detailed Technical Specification
Industrial Capacity Range	High-efficiency throughput from 500 kg/h up to 8,000 kg/h
Roller Dimensions	Precision lengths ranging from 200 mm to 400 mm
Abrasive Technology	Emery-coated, Carborundum, or Custom Grit variants
Drive Technology	Industrial electric motors ranging from 5.5 kW to 30 kW
Construction Material	Heavy-duty Mild Steel or AISI 304/316 Stainless Steel
Adjustment Control	Variable pressure, feed flow, and retention time settings
Cleaning System	Integrated aspiration/suction for instant hull and fine removal
Compliance	Food-grade, GMP, and CE certified designs

---

Operating Principle: Controlled Abrasive Friction

The Mechanics of Precision Dehusking

The Abrasive Roller Huller operates on the principle of surface abrasion, where seeds are subjected to friction between a rotating abrasive roller and a stationary or semi-stationary screen.

1. Feeding and Regulation: Raw material enters the chamber through a regulated inlet. The feed rate is adjusted to ensure the chamber is optimally filled for consistent friction.

2. Abrasive Action: The seeds are propelled against the high-speed emery or carborundum rollers. The abrasive surface “scratches” and rubs away the outer husk or seed coat.

3. Controlled Pressure: An adjustable outlet gate controls the internal pressure and the duration the seeds stay in the chamber (retention time), allowing for deeper or lighter hulling as required.

4. Integrated Aspiration: As the hulls are detached and broken into “fines,” an integrated suction system pulls the light debris away from the heavy kernels.

5. Clean Discharge: The de-hulled kernels exit the machine through the primary discharge, while the husks are collected separately, ensuring a clean milling zone.

---

Industries We Serve with the Abrasive Roller Huller

Innovative Processing Solutions from Seed to Industry

ADDAMS engineers turnkey solutions that transform raw botanical materials into high-value outputs across a diverse range of global sectors.

• Food & Beverage Processing: Delivering hygienic, de-hulled Pulses, Rice, and Cumin for human consumption.

• Animal Feed Processing: Converting Soybean, Maize, and Cottonseed into digestible, high-protein meal.

• Cosmetics Industry: Clean extraction of high-purity oils from Sunflower, Almond, and Flax.

• Health & Nutrition: Processing superfoods like Moringa, Chia, and Turmeric into concentrates and powders.

• Bioenergy Plants: Efficient pre-treatment of Jatropha, Castor, and Sorghum for biodiesel and biogas.

• Pharmaceuticals: GMP-compliant processing for herbal extracts like Fennel, Ginger, and Peppermint.

• Textile Industry: Preparing Cottonseed and Flaxseed for fiber-friendly oil extraction and seedcake production.

---

Processed Crop Groups with ADDAMS Abrasive Huller

Comprehensive Utility for Industrial Dehulling

Crop Group	Industry Uses & Applications
Pulses & Legumes	Chickpeas, Lentils, Beans, Peas: High-protein snacks, flour, and stews.
Grain Crops	Barley, Wheat, Maize, Rice, Sorghum: Pearling, brewing, and flour production.
Oilseed Crops	Soybean, Sunflower, Canola, Cottonseed: Edible oils, biodiesel, and protein meals.
Nut Crops	Almond, Hazelnut, Walnut, Pistachio: Confectionery, cosmetic oils, and healthy snacks.
Spices & Herbs	Pepper, Coriander, Turmeric, Cumin: Seasonings, medicinal extracts, and colorants.
Industrial Crops	Jatropha, Castor Bean, Moringa: Lubricants, plastics, and supplements.
Fibre Crops	Cotton, Flax (Linseed), Hemp: Fabric fibers, linen, and omega-3 oils.

---

Strategic Advantages and Key Features

• Maximum Yield Efficiency: The adjustable pressure system ensures you remove the hull without grinding away the valuable kernel, leading to a higher final yield.

• Dust-Free Facility: Integrated aspiration removes loosened husks and fines instantly, maintaining a clean and safe operational environment.

• 24/7 Industrial Reliability: Built with long-life abrasive rollers and heavy-duty bearings to handle the rigors of continuous high-volume production.

• Modular Versatility: Easily integrates with ADDAMS splitters, gravity separators, and polishers for a complete “raw-to-ready” processing line.

• Customizable Grit: We offer various abrasive coatings tailored specifically to the hardness and thickness of your target crop’s husk.

---

Frequently Asked Questions – Abrasive Roller Huller

How do I prevent kernel breakage during the hulling process?

The ADDAMS Abrasive Huller features two primary controls: the feed rate and the outlet pressure gate. By fine-tuning these, you can ensure the seeds are not over-compressed, maintaining the integrity of even the most sensitive pulses.

What is the lifespan of the abrasive rollers?

Our carborundum and emery-coated rollers are designed for long-term industrial use. Depending on the abrasiveness of the crop (e.g., Sorghum vs. Lentils), rollers typically provide hundreds of hours of service before requiring a simple resurfacing or replacement.

Can the machine be used for pearling barley?

Yes. The Abrasive Roller Huller is the industry standard for pearling barley. It removes the outer bran layers to produce uniform, polished pearled barley used in food and brewing.

Is the machine suitable for organic and gluten-free processing?

Absolutely. We offer stainless steel (AISI 304/316) configurations that are easy to clean and sanitize, making them perfect for organic-certified and gluten-free production facilities.
